• Sanyo Semiconductor/onsemi
• NVMFS5C442NWFET1G
• Discrete Semiconductor Products
• T6-40V N 2.3 MOHMS SL
•  NVMFS5C442NWFET1G Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity1500
• DescriptionN-Channel 40 V 29A (Ta), 140A (Tc) 3.7W (Ta), 83W (Tc) Surface Mount, Wettable Flank 5-DFN (5x6) (8-SOFL)

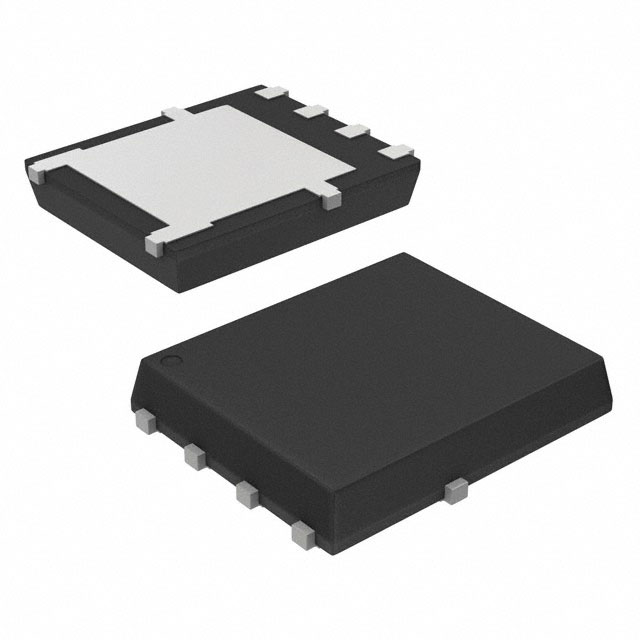

• Package / Case8-PowerTDFN, 5 Leads
• Mounting TypeSurface Mount, Wettable Flank
• Operating Temperature-55°C ~ 175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C29A (Ta), 140A (Tc)
• Rds On (Max) @ Id, Vgs2.3mOhm @ 50A, 10V
• Power Dissipation (Max)3.7W (Ta), 83W (Tc)
• Vgs(th) (Max) @ Id4V @ 90µA
• Supplier Device Package5-DFN (5x6) (8-SOFL)
• GradeAutomotive
• Drive Voltage (Max Rds On, Min Rds On)10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)40 V
• Gate Charge (Qg) (Max) @ Vgs32 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds2100 pF @ 25 V
• QualificationAEC-Q101
