  • Sanyo Semiconductor/onsemi
  • HCPL0639
  • Isolators

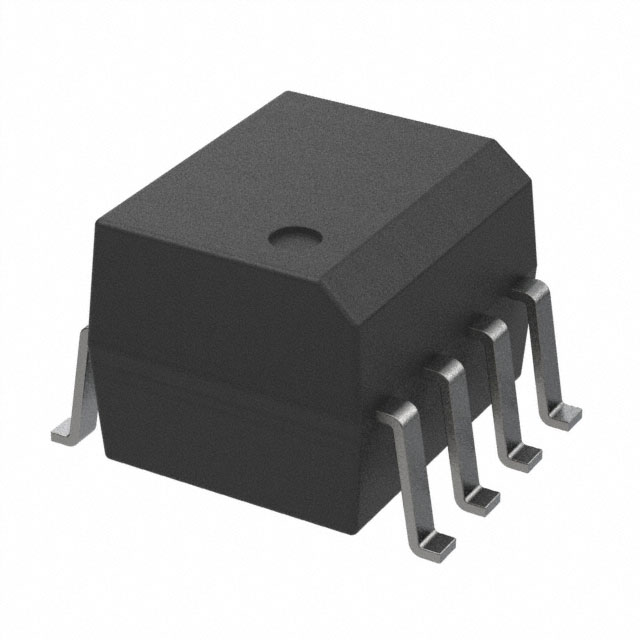

  • OPTOISO 3.75KV 2CH OPEN COLL 8SO
  •  HCPL0639 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIsolators
  • PackagesTube
  • Standard Quantity3000
  • DescriptionLogic Output Optoisolator 10Mbps Open Collector, Schottky Clamped 3750Vrms 2 Channel 25kV/µs CMTI 8-SOIC
  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Output TypeOpen Collector, Schottky Clamped
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Supply4.5V ~ 5.5V
  • Voltage - Forward (Vf) (Typ)1.75V (Max)
  • Data Rate10Mbps
  • Input TypeDC
  • Voltage - Isolation3750Vrms
  • Inputs - Side 1/Side 22/0
  • Supplier Device Package8-SOIC
  • Rise / Fall Time (Typ)17ns, 5ns
  • Common Mode Transient Immunity (Min)25kV/µs
  • Propagation Delay tpLH / tpHL (Max)75ns, 75ns
  • Number of Channels2
  • Current - Output / Channel15 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new HCPL0639 from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,985
Please send an RFQ for instant price and inventory.
