  • Sanyo Semiconductor/onsemi
  • AFGHL40T65RQDN
  • Discrete Semiconductor Products

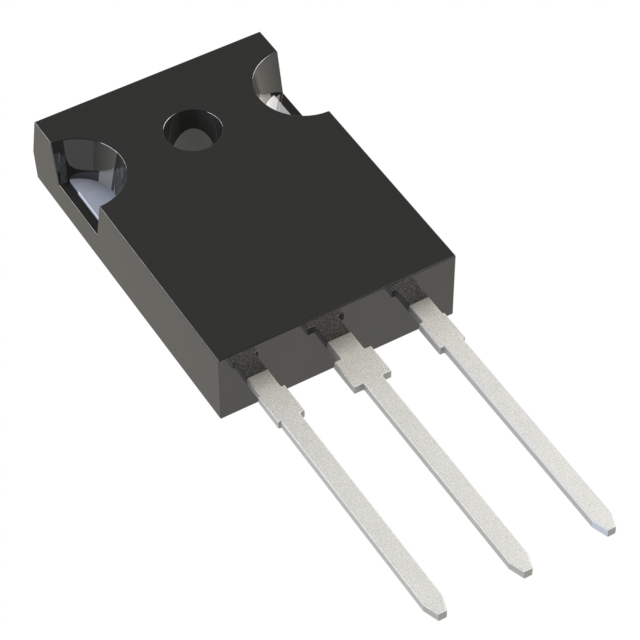

  • IGBT FIELD STOP 650V 46A TO247-3
  •  AFGHL40T65RQDN Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionIGBT Field Stop 650 V 46 A 288 W Through Hole TO-247-3
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)44 ns
  • Vce(on) (Max) @ Vge, Ic1.82V @ 15V, 40A
  • Supplier Device PackageTO-247-3
  • IGBT TypeField Stop
  • Td (on/off) @ 25°C26ns/77ns
  • Switching Energy1.14mJ (on), 740µJ (off)
  • Test Condition400V, 40A, 2.5Ohm, 15V
  • Gate Charge47 nC
  • GradeAutomotive
  • Current - Collector (Ic) (Max)46 A
  • Voltage - Collector Emitter Breakdown (Max)650 V
  • Current - Collector Pulsed (Icm)160 A
  • Power - Max288 W
  • QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new AFGHL40T65RQDN from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
