• Sanyo Semiconductor/onsemi

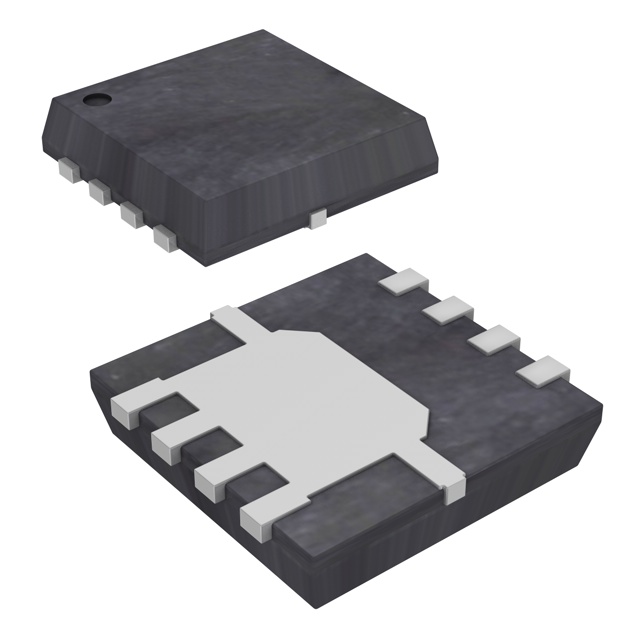

• NTTFS6H860NTAG
• Discrete Semiconductor Products
• TRENCH 8 80V NFET
•  NTTFS6H860NTAG Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity1500
• DescriptionN-Channel 80 V 8A (Ta), 30A (Tc) 3.1W (Ta), 46W (Tc) Surface Mount 8-WDFN (3.3x3.3)
• Package / Case8-PowerWDFN
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 175°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C8A (Ta), 30A (Tc)
• Rds On (Max) @ Id, Vgs21.1mOhm @ 5A, 10V
• Power Dissipation (Max)3.1W (Ta), 46W (Tc)
• Vgs(th) (Max) @ Id4V @ 30µA
• Supplier Device Package8-WDFN (3.3x3.3)
• Drive Voltage (Max Rds On, Min Rds On)6V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)80 V
• Gate Charge (Qg) (Max) @ Vgs8.7 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds510 pF @ 40 V
