  • Sanyo Semiconductor/onsemi
  • FGA20N120FTDTU
  • Discrete Semiconductor Products

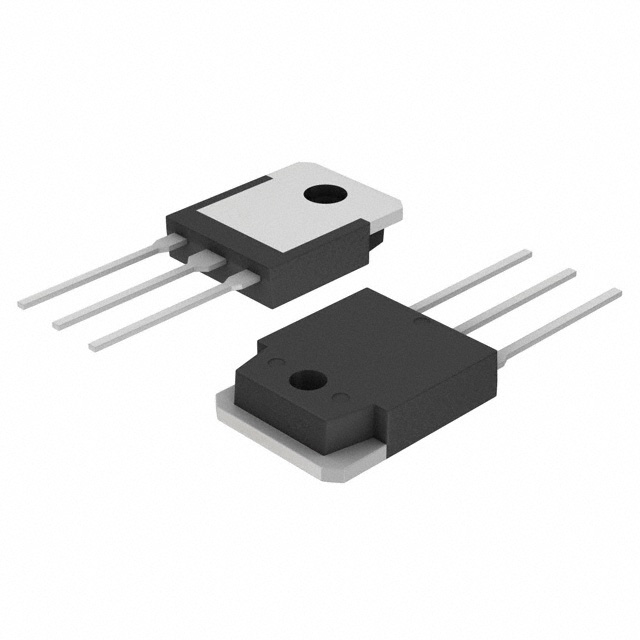

  • IGBT 1200V 40A 298W TO3PN
  •  FGA20N120FTDTU Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionIGBT Trench Field Stop 1200 V 40 A 298 W Through Hole TO-3P
  • Package / CaseTO-3P-3, SC-65-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)447 ns
  • Vce(on) (Max) @ Vge, Ic2V @ 15V, 20A
  • Supplier Device PackageTO-3P
  • IGBT TypeTrench Field Stop
  • Gate Charge137 nC
  • Current - Collector (Ic) (Max)40 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Current - Collector Pulsed (Icm)60 A
  • Power - Max298 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new FGA20N120FTDTU from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
