  • Sanyo Semiconductor/onsemi
  • NCP1294EDBR2G
  • Integrated Circuits (ICs)
  • IC OFFLINE SW MULT TOP 16TSSOP
  •  NCP1294EDBR2G Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionConverter Offline Boost, Flyback, Forward Topology 1MHz 16-TSSOP

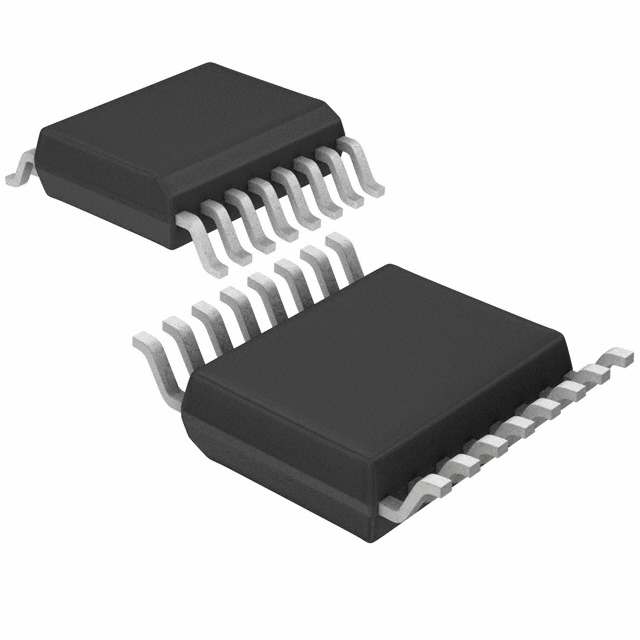

  • Package / Case16-TSSOP (0.173", 4.40mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 125°C (TJ)
  • Duty Cycle85%
  • Frequency - Switching1MHz
  • Internal Switch(s)No
  • Output IsolationIsolated
  • TopologyBoost, Flyback, Forward
  • Voltage - Supply (Vcc/Vdd)3.8V ~ 15V
  • Supplier Device Package16-TSSOP
  • Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage
  • Voltage - Start Up4.6 V
  • Control FeaturesFrequency Control, Soft Start, Sync

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NCP1294EDBR2G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,163
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
