  • Sanyo Semiconductor/onsemi

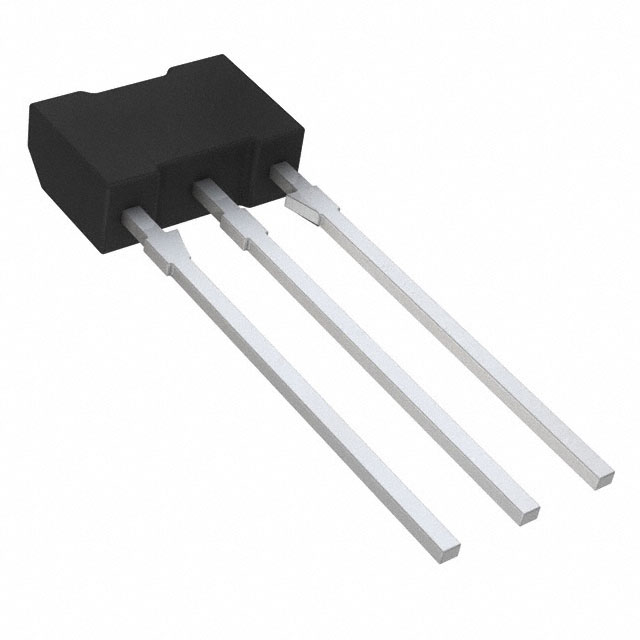

  • 2SA1709S-AN
  • Discrete Semiconductor Products
  • TRANS PNP 100V 2A 3NMP
  •  2SA1709S-AN Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionBipolar (BJT) Transistor PNP 100 V 2 A 120MHz 1 W Through Hole 3-NMP
  • Package / CaseSC-71
  • Mounting TypeThrough Hole
  • Transistor TypePNP
  • Operating Temperature150°C (TJ)
  • Vce Saturation (Max) @ Ib, Ic600mV @ 100mA, 1A
  • Current - Collector Cutoff (Max)100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce100 @ 100mA, 5V
  • Frequency - Transition120MHz
  • Supplier Device Package3-NMP
  • Current - Collector (Ic) (Max)2 A
  • Voltage - Collector Emitter Breakdown (Max)100 V
  • Power - Max1 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2SA1709S-AN from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
