  • Sanyo Semiconductor/onsemi

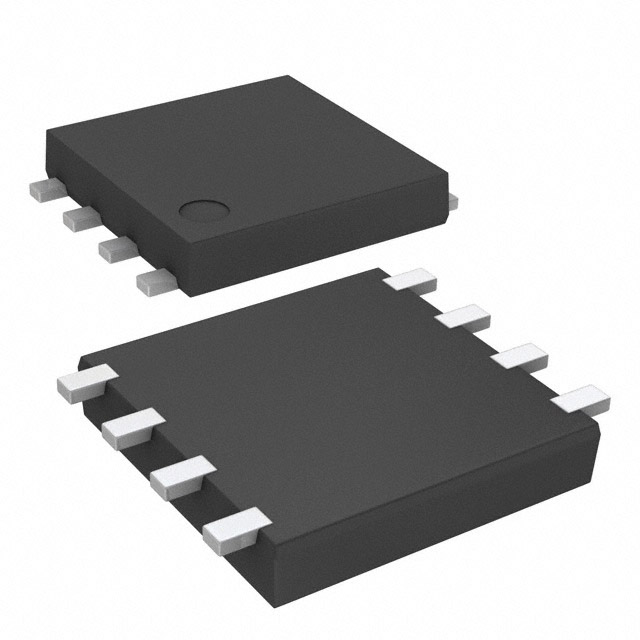

  • ECH8501-TL-H
  • Discrete Semiconductor Products
  • TRANS NPN/PNP 30V 5A 8ECH
  •  ECH8501-TL-H Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionBipolar (BJT) Transistor Array 1 NPN, 1 PNP 30V 5A 280MHz 1.6W Surface Mount 8-ECH
  • Package / Case8-SMD, Flat Lead
  • Mounting TypeSurface Mount
  • Transistor Type1 NPN, 1 PNP
  • Operating Temperature150°C (TJ)
  • Power - Max1.6W
  • Current - Collector (Ic) (Max)5A
  • Voltage - Collector Emitter Breakdown (Max)30V
  • Vce Saturation (Max) @ Ib, Ic110mV @ 125mA, 2.5A
  • Current - Collector Cutoff (Max)100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 500mA, 2V
  • Frequency - Transition280MHz
  • Supplier Device Package8-ECH

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ECH8501-TL-H from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
