  • Sanyo Semiconductor/onsemi

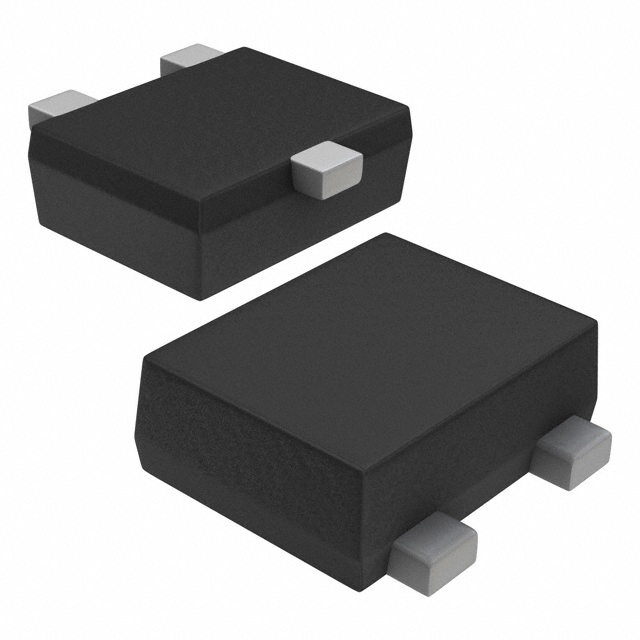

  • MCH3376-TL-E
  • Discrete Semiconductor Products
  • MOSFET P-CH 20V 1.5A 3MCPH
  •  MCH3376-TL-E Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionP-Channel 20 V 1.5A (Ta) 800mW (Ta) Surface Mount 3-MCPH
  • Package / CaseSC-70, SOT-323
  • Mounting TypeSurface Mount
  • Operating Temperature150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeP-Channel
  • Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
  • Rds On (Max) @ Id, Vgs241mOhm @ 750mA, 4.5V
  • Power Dissipation (Max)800mW (Ta)
  • Vgs(th) (Max) @ Id1.4V @ 1mA
  • Supplier Device Package3-MCPH
  • Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
  • Vgs (Max)±10V
  • Drain to Source Voltage (Vdss)20 V
  • Gate Charge (Qg) (Max) @ Vgs1.7 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds120 pF @ 10 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MCH3376-TL-E from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
