  • Sanyo Semiconductor/onsemi

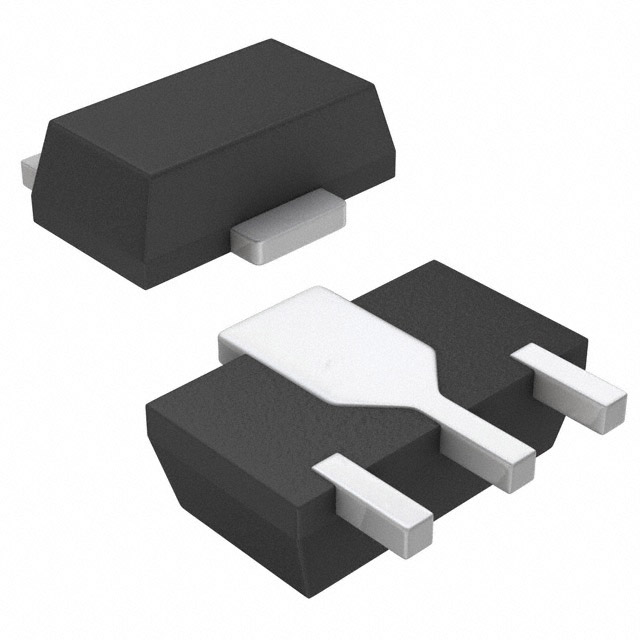

  • SB20-03P-TD-E
  • Discrete Semiconductor Products
  • DIODE SCHOTTKY 30V 2A PCP
  •  SB20-03P-TD-E Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity1000
  • DescriptionDiode 30 V 2A Surface Mount PCP
  • Package / CaseTO-243AA
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr)20 ns
  • TechnologySchottky
  • Capacitance @ Vr, F70pF @ 10V, 1MHz
  • Current - Average Rectified (Io)2A
  • Supplier Device PackagePCP
  • Operating Temperature - Junction-55°C ~ 125°C
  • Voltage - DC Reverse (Vr) (Max)30 V
  • Voltage - Forward (Vf) (Max) @ If550 mV @ 2 A
  • Current - Reverse Leakage @ Vr100 µA @ 15 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new SB20-03P-TD-E from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 5,971
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
