  • Sanyo Semiconductor/onsemi

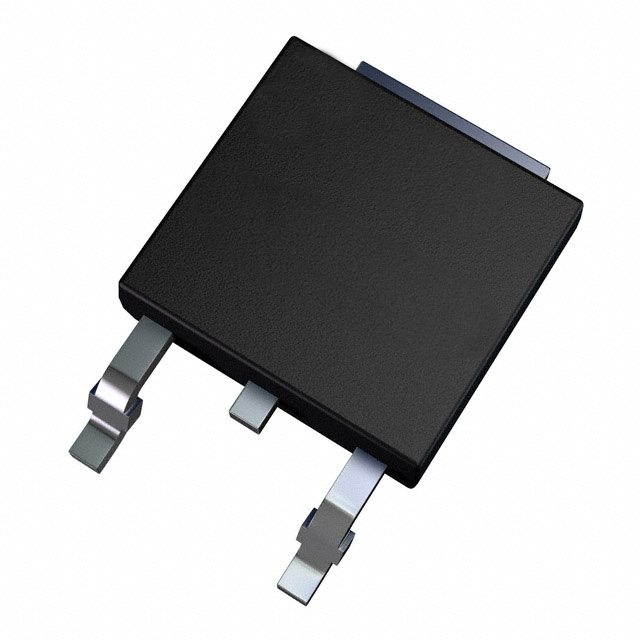

  • 2SD1816S-TL-H
  • Discrete Semiconductor Products
  • TRANS NPN 100V 4A TPFA
  •  2SD1816S-TL-H Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity700
  • DescriptionBipolar (BJT) Transistor NPN 100 V 4 A 180MHz 1 W Surface Mount TP-FA
  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • Transistor TypeNPN
  • Operating Temperature150°C (TJ)
  • Vce Saturation (Max) @ Ib, Ic400mV @ 200mA, 2A
  • Current - Collector Cutoff (Max)1µA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce140 @ 500mA, 5V
  • Frequency - Transition180MHz
  • Supplier Device PackageTP-FA
  • Current - Collector (Ic) (Max)4 A
  • Voltage - Collector Emitter Breakdown (Max)100 V
  • Power - Max1 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 2SD1816S-TL-H from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 691
Please send an RFQ for instant price and inventory.
