  • Sanyo Semiconductor/onsemi
  • 6N138W
  • Isolators

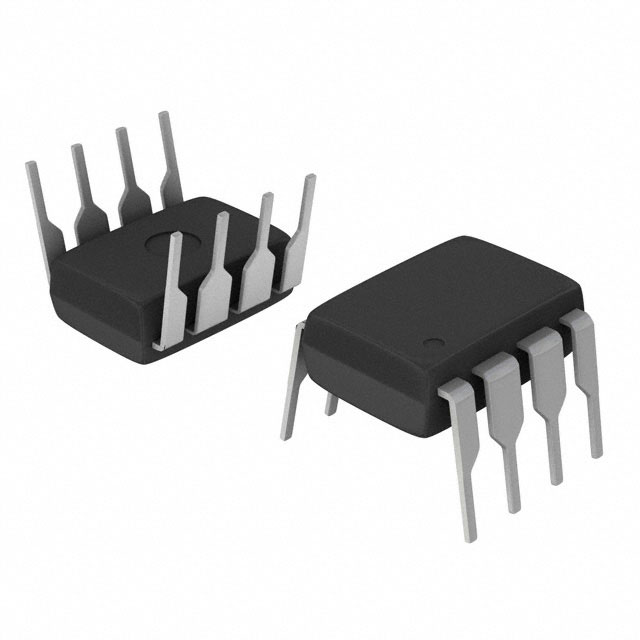

  • OPTOISO 2.5KV DARL W/BASE 8DIP
  •  6N138W Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIsolators
  • PackagesTube
  • Standard Quantity1000
  • DescriptionOptoisolator Darlington with Base Output 2500Vrms 1 Channel 8-MDIP
  • Package / Case8-DIP (0.400", 10.16mm)
  • Output TypeDarlington with Base
  • Mounting TypeThrough Hole
  • Operating Temperature-40°C ~ 85°C
  • Voltage - Forward (Vf) (Typ)1.3V
  • Input TypeDC
  • Current - Output / Channel60mA
  • Voltage - Isolation2500Vrms
  • Current Transfer Ratio (Min)300% @ 1.6mA
  • Supplier Device Package8-MDIP
  • Voltage - Output (Max)7V
  • Turn On / Turn Off Time (Typ)1.5µs, 7µs
  • Number of Channels1
  • Current - DC Forward (If) (Max)20 mA

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 6N138W from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
