  • Sanyo Semiconductor/onsemi
  • MCH6536-TL-E
  • Discrete Semiconductor Products
  • TRANS NPN/PNP 15V/12V 6MCPH
  •  MCH6536-TL-E Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionBipolar (BJT) Transistor Array 1 NPN, 1 PNP 15V, 12V 700mA, 500mA 330MHz, 490MHz 550mW Surface Mount 6-MCPH

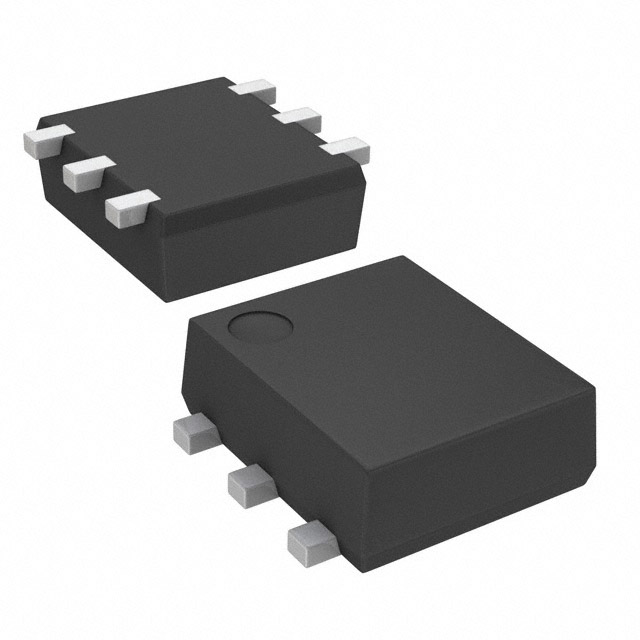

  • Package / Case6-SMD, Flat Leads
  • Mounting TypeSurface Mount
  • Transistor Type1 NPN, 1 PNP
  • Operating Temperature150°C (TJ)
  • Power - Max550mW
  • Current - Collector (Ic) (Max)700mA, 500mA
  • Voltage - Collector Emitter Breakdown (Max)15V, 12V
  • Vce Saturation (Max) @ Ib, Ic300mV @ 10mA, 200mA
  • Current - Collector Cutoff (Max)100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce300 @ 10mA, 2V
  • Frequency - Transition330MHz, 490MHz
  • Supplier Device Package6-MCPH

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new MCH6536-TL-E from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
