  • Sanyo Semiconductor/onsemi

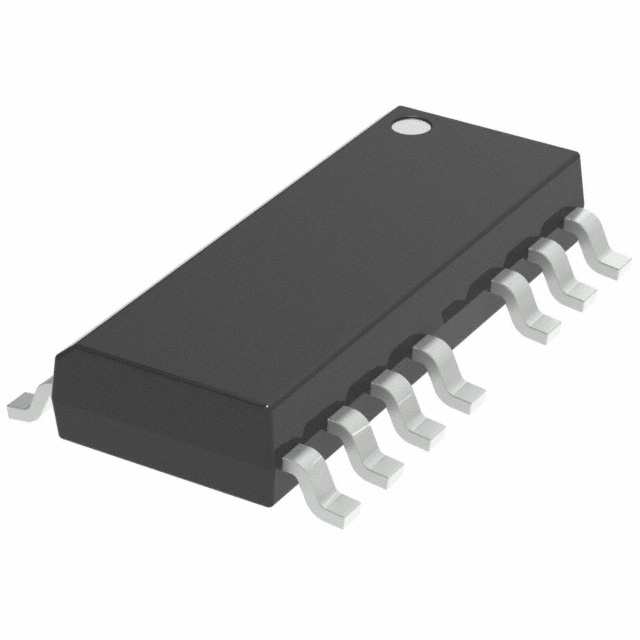

  • NCP1398BDR2G
  • Integrated Circuits (ICs)
  • IC OFFLINE SW HALF-BRDG 16SOIC
  •  NCP1398BDR2G Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionConverter Offline Half-Bridge Topology 50kHz ~ 750kHz 16-SOIC
  • Package / Case16-SOIC (0.154", 3.90mm Width), 15 Leads
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 150°C (TJ)
  • Duty Cycle50%
  • Frequency - Switching50kHz ~ 750kHz
  • Internal Switch(s)No
  • Output IsolationIsolated
  • TopologyHalf-Bridge
  • Voltage - Supply (Vcc/Vdd)9.5V ~ 20V
  • Supplier Device Package16-SOIC
  • Fault ProtectionCurrent Limiting, Over Temperature, Over Voltage, Short Circuit
  • Voltage - Start Up10.5 V
  • Control FeaturesFrequency Control, Soft Start

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NCP1398BDR2G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
