Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • Sanyo Semiconductor/onsemi
  • NCV70522DQ004G
  • Integrated Circuits (ICs)
  • IC MOTOR DRIVER BIPOLAR 36SSOP
  •  NCV70522DQ004G Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIntegrated Circuits (ICs)
  • PackagesTube
  • Standard Quantity46
  • DescriptionBipolar Motor Driver Power MOSFET SPI 36-SSOP-EP

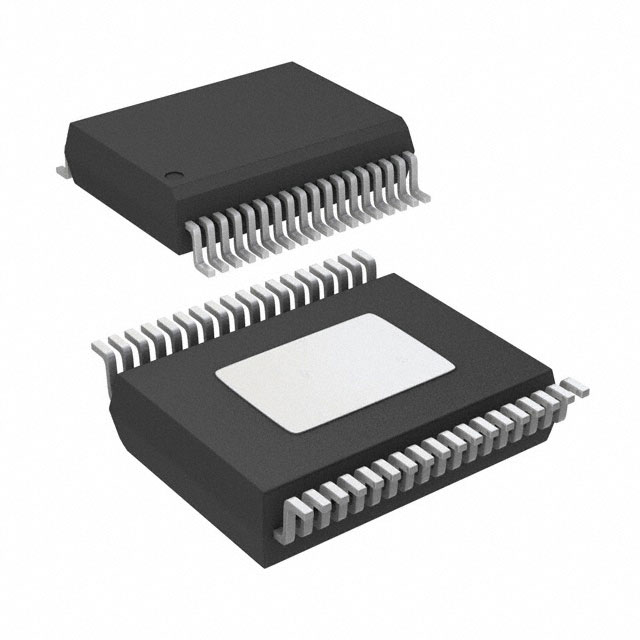

  • Package / Case36-BFSOP (0.295", 7.50mm Width) Exposed Pad
  • Mounting TypeSurface Mount
  • FunctionDriver - Fully Integrated, Control and Power Stage
  • Current - Output1.2A
  • InterfaceSPI
  • Operating Temperature-40°C ~ 172°C (TJ)
  • Output ConfigurationHalf Bridge (4)
  • Voltage - Supply4.75V ~ 5.25V
  • ApplicationsGeneral Purpose
  • TechnologyPower MOSFET
  • Voltage - Load6V ~ 30V
  • Supplier Device Package36-SSOP-EP
  • Motor Type - StepperBipolar
  • Step Resolution1 ~ 1/32

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NCV70522DQ004G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
