  • Sanyo Semiconductor/onsemi
  • NSV20201LT1G
  • Discrete Semiconductor Products

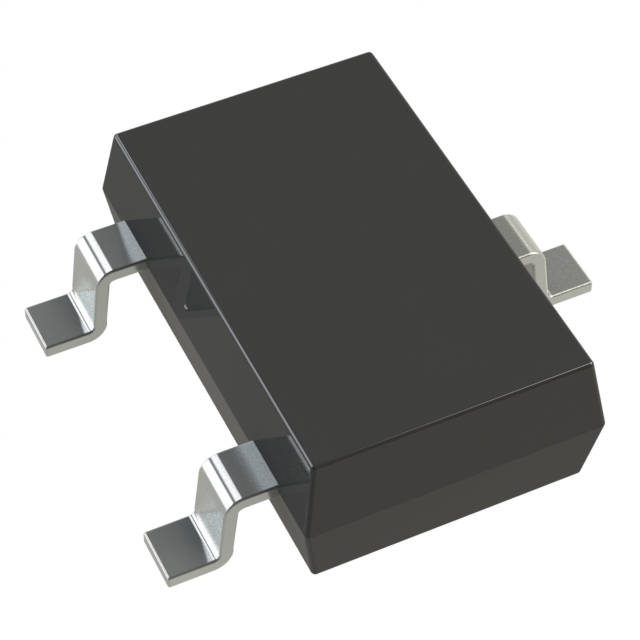

  • TRANS NPN 20V 2A SOT23-3
  •  NSV20201LT1G Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity3000
  • DescriptionBipolar (BJT) Transistor NPN 20 V 2 A 150MHz 460 mW Surface Mount SOT-23-3 (TO-236)
  • Package / CaseTO-236-3, SC-59, SOT-23-3
  • Mounting TypeSurface Mount
  • Transistor TypeNPN
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Vce Saturation (Max) @ Ib, Ic100mV @ 200mA, 2A
  • Current - Collector Cutoff (Max)100nA (ICBO)
  • DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 500mA, 2V
  • Frequency - Transition150MHz
  • Supplier Device PackageSOT-23-3 (TO-236)
  • Current - Collector (Ic) (Max)2 A
  • Voltage - Collector Emitter Breakdown (Max)20 V
  • Power - Max460 mW

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NSV20201LT1G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 2,960
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
