Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionIGBT 600 V 9 A 49 W Surface Mount DPAK

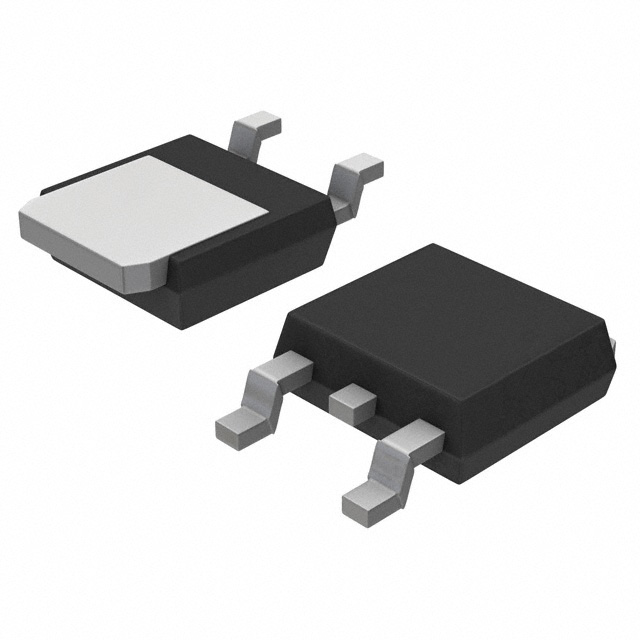

  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • Operating Temperature175°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)65 ns
  • Vce(on) (Max) @ Vge, Ic2.1V @ 15V, 3A
  • Supplier Device PackageDPAK
  • Td (on/off) @ 25°C27ns/59ns
  • Switching Energy50µJ (on), 27µJ (off)
  • Test Condition300V, 3A, 30Ohm, 15V
  • Gate Charge17 nC
  • Current - Collector (Ic) (Max)9 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)12 A
  • Power - Max49 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NGTB03N60R2DT4G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.
