  • Sanyo Semiconductor/onsemi
  • NGTB40N120S3WG
  • Discrete Semiconductor Products

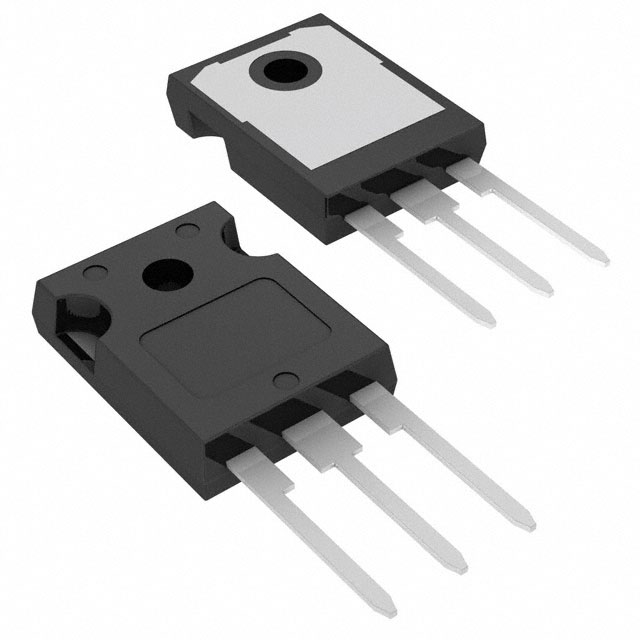

  • IGBT 1.2KV 40A TO247-3
  •  NGTB40N120S3WG Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity30
  • DescriptionIGBT Trench Field Stop 1200 V 160 A 454 W Through Hole TO-247-3
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • Operating Temperature-55°C ~ 175°C (TJ)
  • Input TypeStandard
  • Reverse Recovery Time (trr)163 ns
  • Vce(on) (Max) @ Vge, Ic1.95V @ 15V, 40A
  • Supplier Device PackageTO-247-3
  • IGBT TypeTrench Field Stop
  • Td (on/off) @ 25°C12ns/145ns
  • Switching Energy2.2mJ (on), 1.1mJ (off)
  • Test Condition600V, 40A, 10Ohm, 15V
  • Gate Charge212 nC
  • Current - Collector (Ic) (Max)160 A
  • Voltage - Collector Emitter Breakdown (Max)1200 V
  • Current - Collector Pulsed (Icm)160 A
  • Power - Max454 W
