• Sanyo Semiconductor/onsemi
• NTMFS4C020NT1G
• Discrete Semiconductor Products
• MOSFET N-CH 30V 47A/303A 5DFN
•  NTMFS4C020NT1G Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity1500
• DescriptionN-Channel 30 V 47A (Ta), 303A (Tc) 3.2W (Ta), 134W (Tc) Surface Mount 5-DFN (5x6) (8-SOFL)

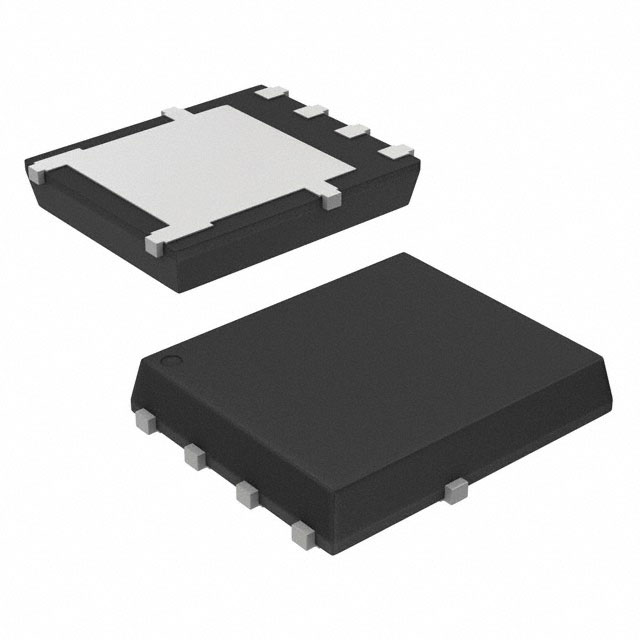

• Package / Case8-PowerTDFN, 5 Leads
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C47A (Ta), 303A (Tc)
• Rds On (Max) @ Id, Vgs0.7mOhm @ 30A, 10V
• Power Dissipation (Max)3.2W (Ta), 134W (Tc)
• Vgs(th) (Max) @ Id2.2V @ 250µA
• Supplier Device Package5-DFN (5x6) (8-SOFL)
• Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)30 V
• Gate Charge (Qg) (Max) @ Vgs139 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds10144 pF @ 15 V
