NVMFS4C302NWFT1G Sanyo Semiconductor/onsemi Order From Hard Find Electronics

Electronic Components

At Hard Find Electronics Tech, we source hard-to-find electronic components and manage supply, cost reduction, excess inventory management, and more.

Sanyo Semiconductor/onsemi

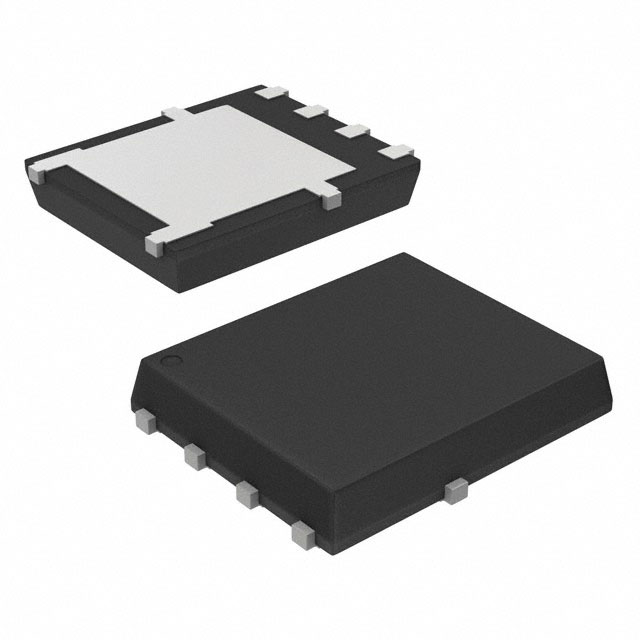

NVMFS4C302NWFT1G
Discrete Semiconductor Products
MOSFET N-CH 30V 43A/241A 5DFN
NVMFS4C302NWFT1G Datasheet

Cost Reduction
Min Order From 1 PCS
365 Days Warranty
12 Hours Quotation

Product Specifications

AttributesAttribute Value
ManufacturerSanyo Semiconductor/onsemi
CategoryDiscrete Semiconductor Products
PackagesTape & Reel (TR)
Standard Quantity1500
DescriptionN-Channel 30 V 43A (Ta), 241A (Tc) 3.75W (Ta), 115W (Tc) Surface Mount, Wettable Flank 5-DFN (5x6) (8-SOFL)
Package / Case8-PowerTDFN, 5 Leads
Mounting TypeSurface Mount, Wettable Flank
Operating Temperature-55°C ~ 175°C (TJ)
TechnologyMOSFET (Metal Oxide)
FET TypeN-Channel
Current - Continuous Drain (Id) @ 25°C43A (Ta), 241A (Tc)
Rds On (Max) @ Id, Vgs1.15mOhm @ 30A, 10V
Power Dissipation (Max)3.75W (Ta), 115W (Tc)
Vgs(th) (Max) @ Id2.2V @ 250µA
Supplier Device Package5-DFN (5x6) (8-SOFL)
GradeAutomotive
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs (Max)±20V
Drain to Source Voltage (Vdss)30 V
Gate Charge (Qg) (Max) @ Vgs82 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds5780 pF @ 15 V
QualificationAEC-Q101

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NVMFS4C302NWFT1G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide

RFQ

Source at least two reliable suppliers
QUOTE

Information checking available/price/condition
QC PROCESS

3-Step Quality Control and Professional Third-Party Test
SHIPMENT

FedEx, DHL, UPS, TNT

In Stock: 1,500

Please send an RFQ for instant price and inventory.
