• Sanyo Semiconductor/onsemi
• FDD5680
• Discrete Semiconductor Products

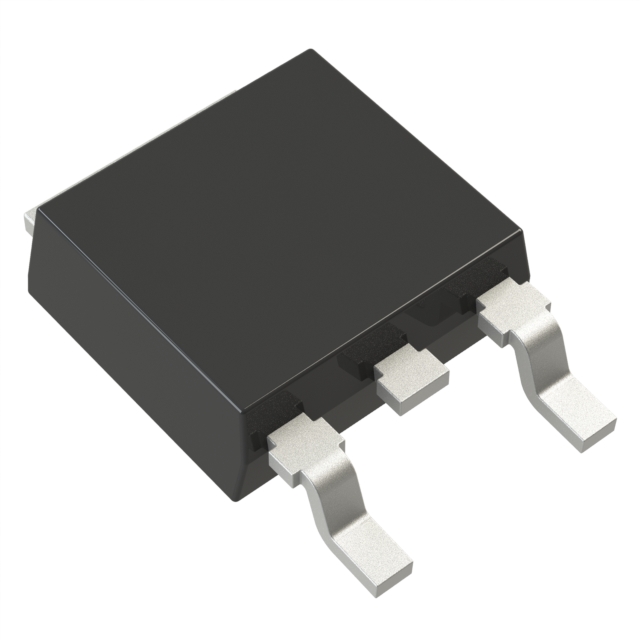

• MOSFET N-CH 60V 8.5A TO252
•  FDD5680 Datasheet
•

• Cost Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSanyo Semiconductor/onsemi
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity2500
• DescriptionN-Channel 60 V 8.5A (Ta) 2.8W (Ta), 60W (Tc) Surface Mount TO-252AA
• Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
• Mounting TypeSurface Mount
• Operating Temperature-55°C ~ 150°C (TJ)
• TechnologyMOSFET (Metal Oxide)
• FET TypeN-Channel
• Current - Continuous Drain (Id) @ 25°C8.5A (Ta)
• Rds On (Max) @ Id, Vgs21mOhm @ 8.5A, 10V
• Power Dissipation (Max)2.8W (Ta), 60W (Tc)
• Vgs(th) (Max) @ Id4V @ 250µA
• Supplier Device PackageTO-252AA
• Drive Voltage (Max Rds On, Min Rds On)6V, 10V
• Vgs (Max)±20V
• Drain to Source Voltage (Vdss)60 V
• Gate Charge (Qg) (Max) @ Vgs46 nC @ 10 V
• Input Capacitance (Ciss) (Max) @ Vds1835 pF @ 30 V
