  • Sanyo Semiconductor/onsemi

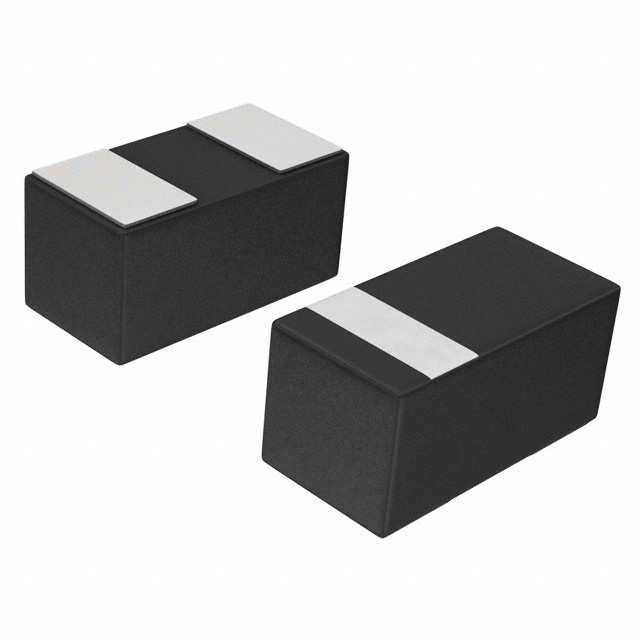

  • NSR05402NXT5G
  • Discrete Semiconductor Products
  • DIODE SCHOTTKY 40V 500MA 2DSN
  •  NSR05402NXT5G Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity5000
  • DescriptionDiode 40 V 500mA Surface Mount 2-DSN (0.60x0.30)
  • Package / Case0201 (0603 Metric)
  • Mounting TypeSurface Mount
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • TechnologySchottky
  • Capacitance @ Vr, F9.5pF @ 5V, 1MHz
  • Current - Average Rectified (Io)500mA
  • Supplier Device Package2-DSN (0.60x0.30)
  • Operating Temperature - Junction-55°C ~ 150°C
  • Voltage - DC Reverse (Vr) (Max)40 V
  • Voltage - Forward (Vf) (Max) @ If620 mV @ 500 mA
  • Current - Reverse Leakage @ Vr20 µA @ 40 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NSR05402NXT5G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
