  • Sanyo Semiconductor/onsemi
  • NCV1077CSTBT3G
  • Integrated Circuits (ICs)

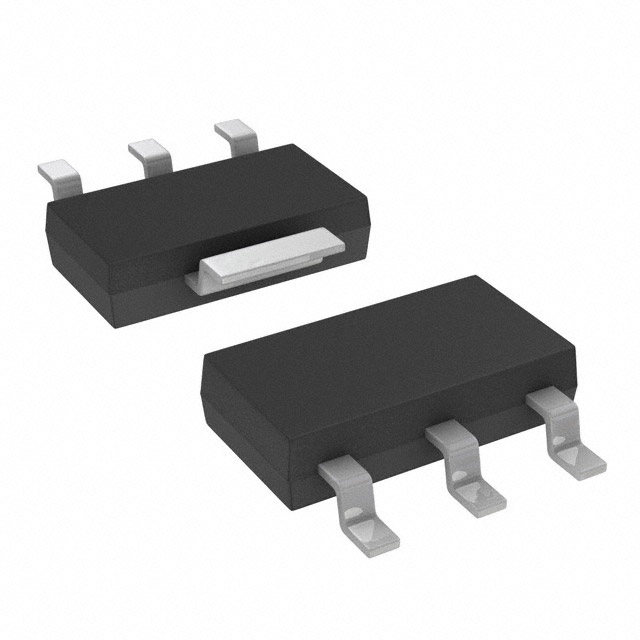

  • IC OFFLINE SWITCH FLYBACK SOT223
  •  NCV1077CSTBT3G Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSanyo Semiconductor/onsemi
  • CategoryIntegrated Circuits (ICs)
  • PackagesTape & Reel (TR)
  • Standard Quantity4000
  • DescriptionConverter Offline Flyback Topology 100kHz SOT-223 (TO-261)
  • Package / CaseTO-261-4, TO-261AA
  • Mounting TypeSurface Mount
  • Operating Temperature-40°C ~ 125°C (TJ)
  • Duty Cycle69%
  • Frequency - Switching100kHz
  • Internal Switch(s)Yes
  • Voltage - Breakdown670V
  • Output IsolationNon-Isolated
  • TopologyFlyback
  • Voltage - Supply (Vcc/Vdd)7.7V ~ 8.5V
  • Supplier Device PackageSOT-223 (TO-261)
  • Fault ProtectionCurrent Limiting, Over Load, Over Voltage, Short Circuit
  • Voltage - Start Up8.1 V
  • Control FeaturesEN, Frequency Control, Soft Start
  • GradeAutomotive
  • Power (Watts)25 W
  • QualificationAEC-Q100

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new NCV1077CSTBT3G from Sanyo Semiconductor/onsemi only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 3,980
Please send an RFQ for instant price and inventory.
