Product Specifications
  • AttributesAttribute Value
  • ManufacturerSchaffner EMC, Inc.
  • CategoryFilters
  • PackagesTray
  • Standard Quantity24

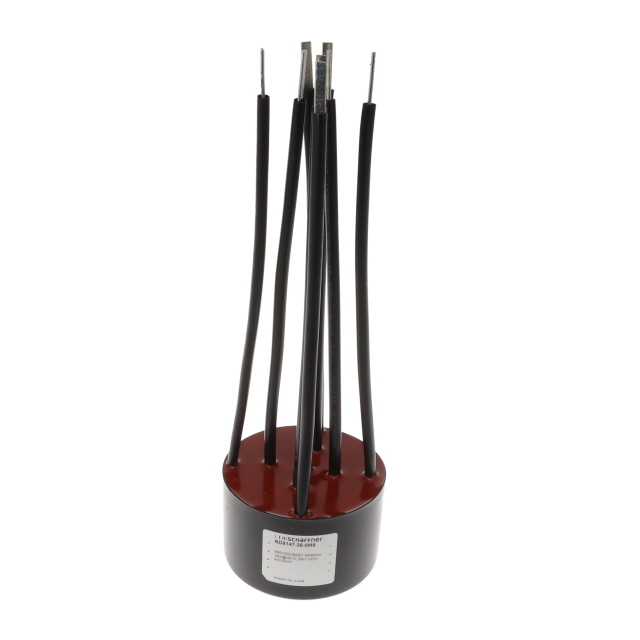

  • Description800 µH @ 1 kHz 4 Line Common Mode Choke Through Hole 36A (Typ) DCR 3mOhm (Typ)
  • Package / CaseHorizontal, 8 PC Pin
  • Filter TypePower Line
  • Size / Dimension3.150" L x 3.150" W (80.00mm x 80.00mm)
  • Mounting TypeThrough Hole
  • Number of Lines4
  • Operating Temperature-25°C ~ 110°C
  • Height (Max)1.988" (50.50mm)
  • Voltage Rating - AC600V
  • Voltage Rating - DC850V
  • Current Rating (Max)36A (Typ)
  • DC Resistance (DCR) (Max)3mOhm (Typ)
  • Inductance @ Frequency800 µH @ 1 kHz

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new RD8147-36-0M8 from Schaffner EMC, Inc. only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 6
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
