  • SMC Diode Solutions
  • S4D15120A
  • Discrete Semiconductor Products

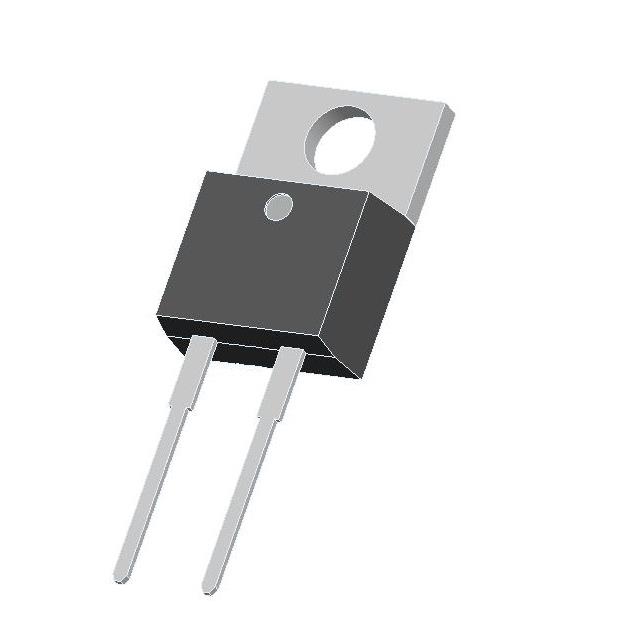

  • DIODE SIL CARB 1.2KV 15A TO220AC
  •  S4D15120A Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSMC Diode Solutions
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity1000
  • DescriptionDiode 1200 V 15A Through Hole TO-220AC (TO-220-2)
  • Package / CaseTO-220-2
  • Mounting TypeThrough Hole
  • SpeedNo Recovery Time > 500mA (Io)
  • Reverse Recovery Time (trr)0 ns
  • TechnologySiC (Silicon Carbide) Schottky
  • Capacitance @ Vr, F1200pF @ 0V, 1MHz
  • Current - Average Rectified (Io)15A
  • Supplier Device PackageTO-220AC (TO-220-2)
  • Operating Temperature - Junction-55°C ~ 175°C
  • Voltage - DC Reverse (Vr) (Max)1200 V
  • Voltage - Forward (Vf) (Max) @ If1.8 V @ 15 A
  • Current - Reverse Leakage @ Vr35 µA @ 1200 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new S4D15120A from SMC Diode Solutions only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 278
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
