  • SMC Diode Solutions
  • S4D10120E
  • Discrete Semiconductor Products

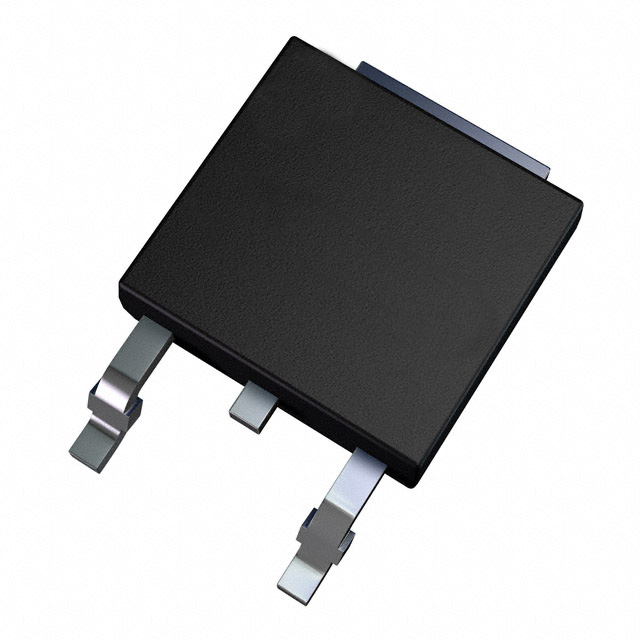

  • DIODE SIL CARBIDE 1.2KV 10A DPAK
  •  S4D10120E Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSMC Diode Solutions
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity1000
  • DescriptionDiode 1200 V 10A Surface Mount DPAK
  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • SpeedNo Recovery Time > 500mA (Io)
  • Reverse Recovery Time (trr)0 ns
  • TechnologySiC (Silicon Carbide) Schottky
  • Capacitance @ Vr, F772pF @ 0V, 1MHz
  • Current - Average Rectified (Io)10A
  • Supplier Device PackageDPAK
  • Operating Temperature - Junction-55°C ~ 175°C
  • Voltage - DC Reverse (Vr) (Max)1200 V
  • Voltage - Forward (Vf) (Max) @ If1.8 V @ 10 A
  • Current - Reverse Leakage @ Vr30 µA @ 1200 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new S4D10120E from SMC Diode Solutions only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.
