  • SMC Diode Solutions
  • STW80H150C
  • Discrete Semiconductor Products
  • DIODE ARR SCHOT 150V 40A TO247AD
  •  STW80H150C Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSMC Diode Solutions
  • CategoryDiscrete Semiconductor Products
  • PackagesTube
  • Standard Quantity25

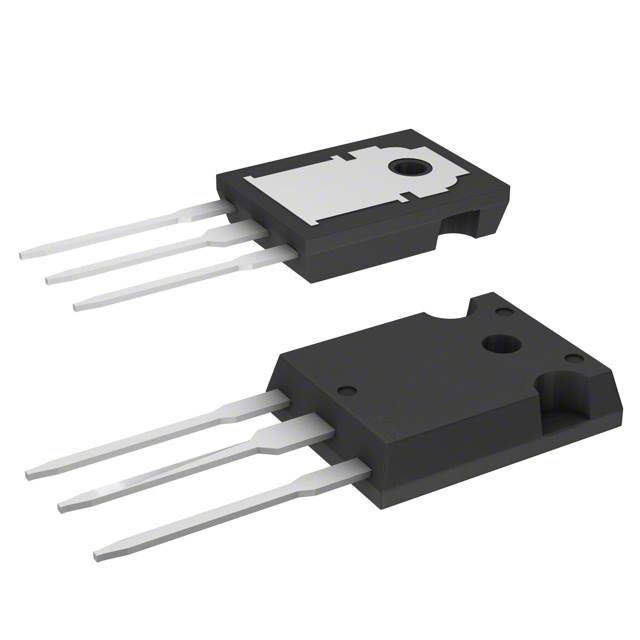

  • DescriptionDiode Array 1 Pair Common Cathode 150 V 40A Through Hole TO-247-3
  • Package / CaseTO-247-3
  • Mounting TypeThrough Hole
  • SpeedFast Recovery =< 500ns, > 200mA (Io)
  • TechnologySchottky
  • Diode Configuration1 Pair Common Cathode
  • Current - Average Rectified (Io) (per Diode)40A
  • Supplier Device PackageTO-247AD
  • Operating Temperature - Junction-55°C ~ 175°C
  • Voltage - DC Reverse (Vr) (Max)150 V
  • Voltage - Forward (Vf) (Max) @ If910 mV @ 40 A
  • Current - Reverse Leakage @ Vr300 µA @ 150 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new STW80H150C from SMC Diode Solutions only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 107
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
