  • Spang Magnetics (Magnetics)
  • 0077912A7
  • Magnetics - Transformer, Inductor Components

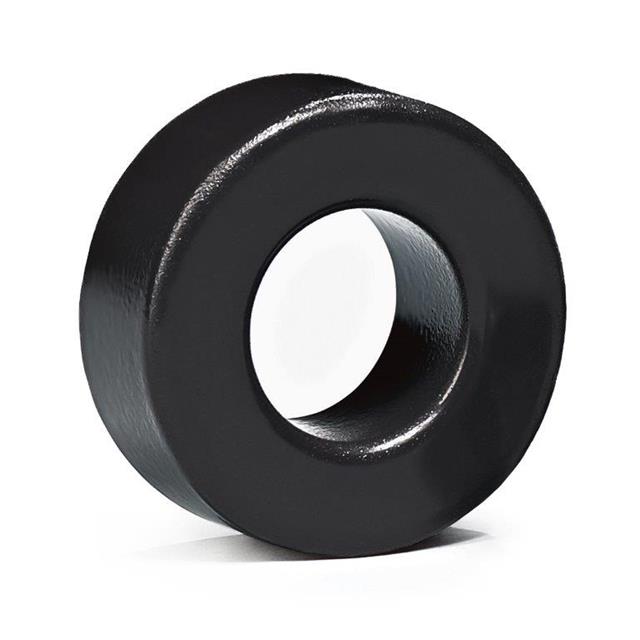

  • FERRITE CORE TOROID 57NH KOOL MU
  •  0077912A7 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSpang Magnetics (Magnetics)
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity120
  • DescriptionCoated Kool Mu Ferrite Core Toroid Type Length Width 3.063" (77.80mm) Diameter 0.625" (15.88mm) Height
  • Tolerance±8%
  • MaterialKool Mu
  • Diameter3.063" (77.80mm)
  • Height0.625" (15.88mm)
  • Core TypeToroid
  • Inductance Factor (Al)57 nH
  • Initial Permeability (µi)40
  • FinishCoated
  • GapUngapped
  • Effective Length (le) mm196.0
  • Effective Area (Ae) mm²221.0
  • Effective Magnetic Volume (Ve) mm³43400.0

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 0077912A7 from Spang Magnetics (Magnetics) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 104
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
