  • Spang Magnetics (Magnetics)
  • 00K4022E060
  • Magnetics - Transformer, Inductor Components

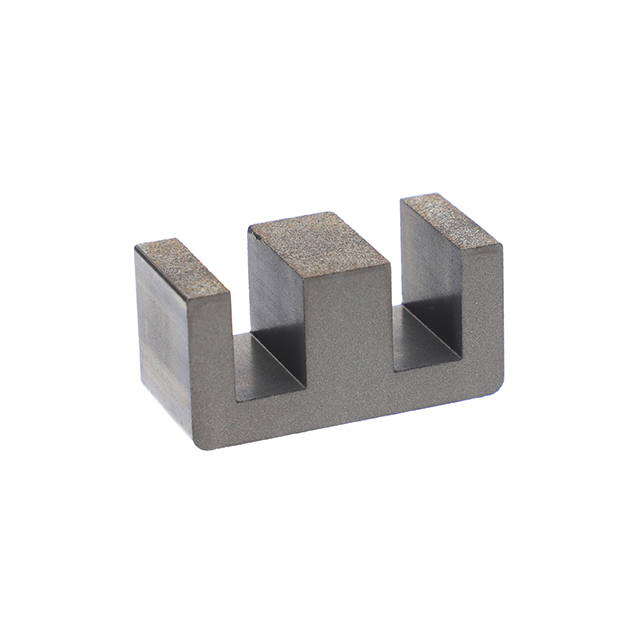

  • FERRITE CORE E 194NH KOOL MU
  •  00K4022E060 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSpang Magnetics (Magnetics)
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity540
  • DescriptionUncoated Kool Mu Ferrite Core E Type 1.687" (42.85mm) Length 0.787" (20.00mm) Width Diameter 0.830" (21.08mm) Height
  • Tolerance±8%
  • MaterialKool Mu
  • Length1.687" (42.85mm)
  • Width0.787" (20.00mm)
  • Height0.830" (21.08mm)
  • Core TypeE
  • Inductance Factor (Al)194 nH
  • Initial Permeability (µi)60
  • FinishUncoated
  • GapUngapped
  • Effective Length (le) mm98.4
  • Effective Area (Ae) mm²237.0
  • Effective Magnetic Volume (Ve) mm³23300.0

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new 00K4022E060 from Spang Magnetics (Magnetics) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,620
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
