Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • Spang Magnetics (Magnetics)
  • EQH3626E060L100
  • Magnetics - Transformer, Inductor Components
  • HIGH FLUX 060 PERM EQ 3626 SIZE
  •  EQH3626E060L100 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSpang Magnetics (Magnetics)
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity300

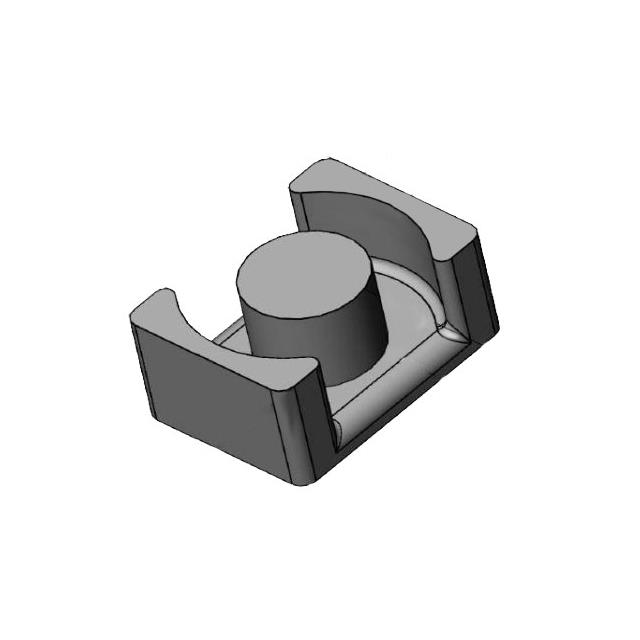

  • DescriptionUncoated High Flux Ferrite Core EQ Type 1.417" (36.00mm) Length 1.024" (26.00mm) Width Diameter 0.394" (10.00mm) Height
  • Tolerance±8%
  • MaterialHigh Flux
  • Length1.417" (36.00mm)
  • Width1.024" (26.00mm)
  • Height0.394" (10.00mm)
  • Core TypeEQ
  • Inductance Factor (Al)224 nH
  • Initial Permeability (µi)60
  • FinishUncoated
  • GapUngapped
  • Effective Length (le) mm65.1
  • Effective Area (Ae) mm²181
  • Effective Magnetic Volume (Ve) mm³11800

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new EQH3626E060L100 from Spang Magnetics (Magnetics) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
