  • Spang Magnetics (Magnetics)
  • ZW49740TC
  • Magnetics - Transformer, Inductor Components

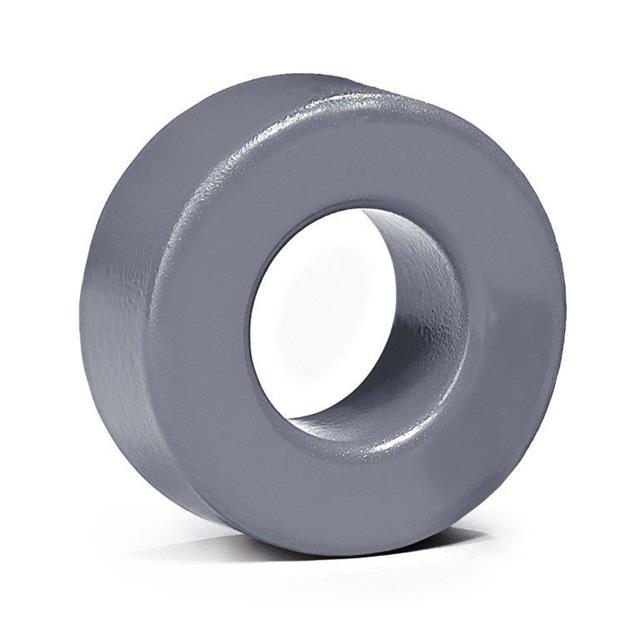

  • FERRITE CORE TOROID 11.823UH W
  •  ZW49740TC Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSpang Magnetics (Magnetics)
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBulk
  • Standard Quantity24
  • DescriptionEpoxy W Ferrite Core Toroid Type Length Width 5.650" (143.50mm) Diameter 1.039" (26.40mm) Height
  • Tolerance±30%
  • MaterialW
  • Diameter5.650" (143.50mm)
  • Height1.039" (26.40mm)
  • Core TypeToroid
  • Inductance Factor (Al)11.823 µH
  • Initial Permeability (µi)10000
  • FinishEpoxy
  • GapUngapped
  • Effective Length (le) mm381.5
  • Effective Area (Ae) mm²422.3
  • Effective Magnetic Volume (Ve) mm³161086

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new ZW49740TC from Spang Magnetics (Magnetics) only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 244
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
