  • STMicroelectronics
  • STGB6NC60HT4
  • Discrete Semiconductor Products
  • IGBT 600V 15A 56W D2PAK
  •  STGB6NC60HT4 Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSTMicroelectronics
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity1000
  • DescriptionIGBT 600 V 15 A 56 W Surface Mount D2PAK

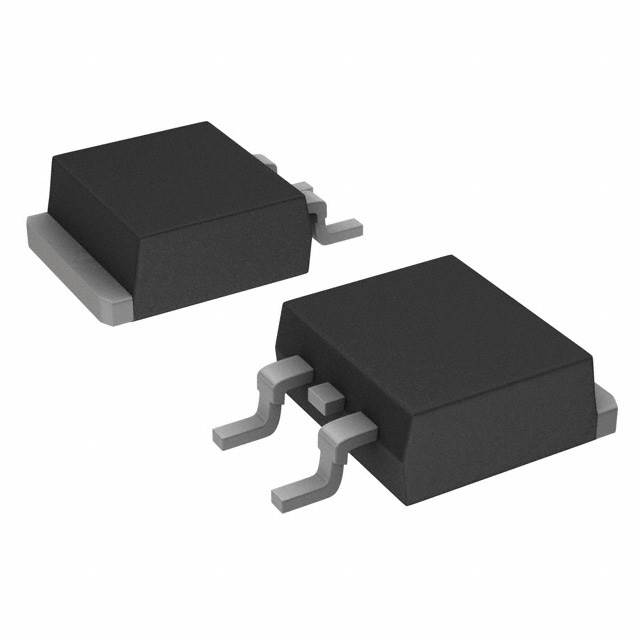

  • Package / CaseTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic2.5V @ 15V, 3A
  • Supplier Device PackageD2PAK
  • Td (on/off) @ 25°C12ns/76ns
  • Switching Energy20µJ (on), 68µJ (off)
  • Test Condition390V, 3A, 10Ohm, 15V
  • Gate Charge13.6 nC
  • Current - Collector (Ic) (Max)15 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)21 A
  • Power - Max56 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new STGB6NC60HT4 from STMicroelectronics only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 174
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
