  • STMicroelectronics
  • STD5N52U
  • Discrete Semiconductor Products

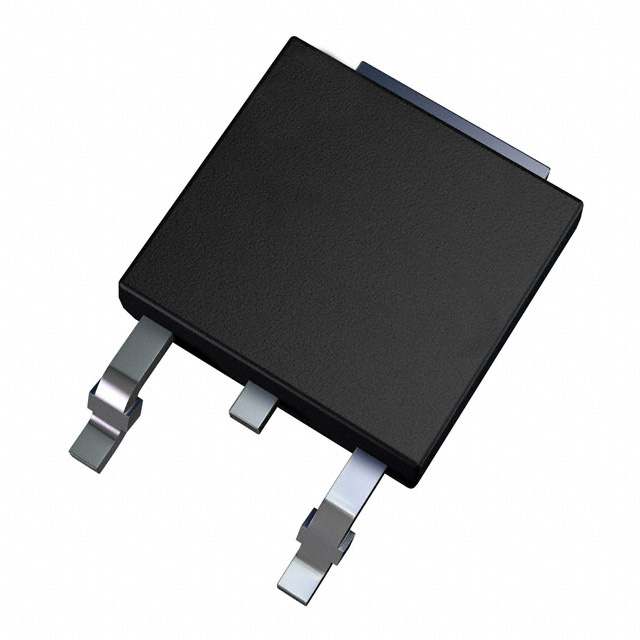

  • MOSFET N-CH 525V 4.4A DPAK
  •  STD5N52U Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSTMicroelectronics
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionN-Channel 525 V 4.4A (Tc) 70W (Tc) Surface Mount DPAK
  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 150°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C4.4A (Tc)
  • Rds On (Max) @ Id, Vgs1.5Ohm @ 2.2A, 10V
  • Power Dissipation (Max)70W (Tc)
  • Vgs(th) (Max) @ Id4.5V @ 50µA
  • Supplier Device PackageDPAK
  • Drive Voltage (Max Rds On, Min Rds On)10V
  • Vgs (Max)±30V
  • Drain to Source Voltage (Vdss)525 V
  • Gate Charge (Qg) (Max) @ Vgs16.9 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds529 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new STD5N52U from STMicroelectronics only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 4,972
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
