• STMicroelectronics
• TN22-1500B-TR
• Discrete Semiconductor Products

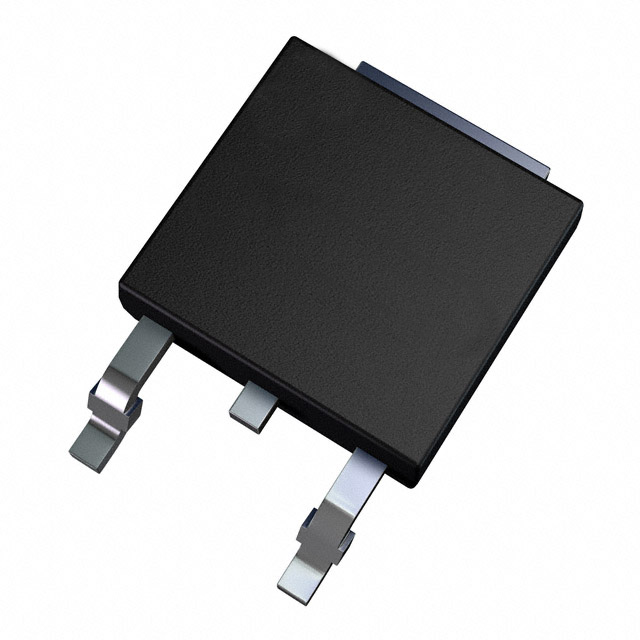

• SCR 400V 2A DPAK
•  TN22-1500B-TR Datasheet
•

• Cost
  Reduction
• Min Order From 1 PCS
• 365 Days Warranty
• 12 Hours Quotation

• AttributesAttribute Value
• ManufacturerSTMicroelectronics
• CategoryDiscrete Semiconductor Products
• PackagesTape & Reel (TR)
• Standard Quantity2500
• DescriptionSCR 400 V 2 A Standard Recovery Surface Mount DPAK
• Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
• Mounting TypeSurface Mount
• SCR TypeStandard Recovery
• Operating Temperature-40°C ~ 110°C
• Current - Hold (Ih) (Max)175 mA
• Current - Gate Trigger (Igt) (Max)1.5 mA
• Current - Non Rep. Surge 50, 60Hz (Itsm)20A, 22A
• Current - On State (It (AV)) (Max)1.8 A
• Voltage - Gate Trigger (Vgt) (Max)3 V
• Voltage - On State (Vtm) (Max)3.1 V
• Current - Off State (Max)100 µA
• Supplier Device PackageDPAK
• Current - On State (It (RMS)) (Max)2 A
• Voltage - Off State400 V
