Product Specifications
  • AttributesAttribute Value
  • ManufacturerSTMicroelectronics
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionIGBT 600 V 14 A 70 W Surface Mount DPAK

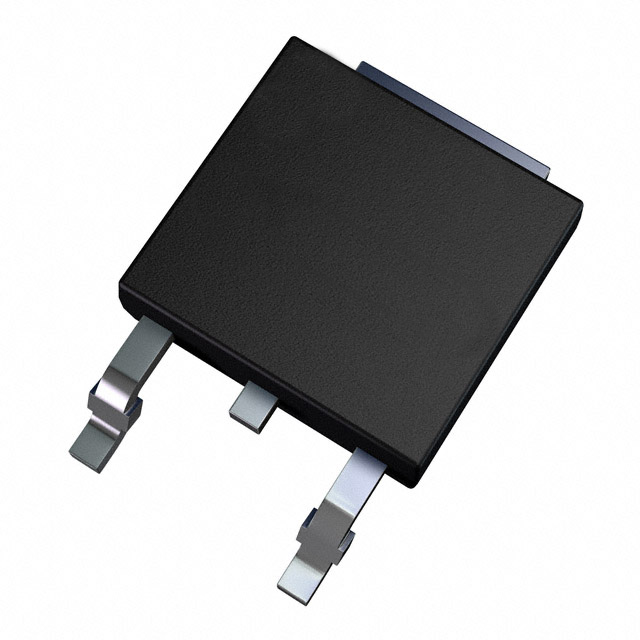

  • Package / CaseTO-252-3, DPAK (2 Leads + Tab), SC-63
  • Mounting TypeSurface Mount
  • Operating Temperature150°C (TJ)
  • Input TypeStandard
  • Vce(on) (Max) @ Vge, Ic2.8V @ 15V, 7A
  • Supplier Device PackageDPAK
  • Td (on/off) @ 25°C15ns/50ns
  • Switching Energy95µJ (on), 140µJ (off)
  • Test Condition480V, 7A, 10Ohm, 15V
  • Gate Charge32.7 nC
  • Current - Collector (Ic) (Max)14 A
  • Voltage - Collector Emitter Breakdown (Max)600 V
  • Current - Collector Pulsed (Icm)56 A
  • Power - Max70 W

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new STGD7NB60KT4 from STMicroelectronics only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 1,240
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
