  • STMicroelectronics
  • STS25NH3LL-E
  • Discrete Semiconductor Products
  • MOSFET N-CH 30V 25A 8SO
  •  STS25NH3LL-E Datasheet
  • Cost
    Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerSTMicroelectronics
  • CategoryDiscrete Semiconductor Products
  • PackagesTape & Reel (TR)
  • Standard Quantity2500
  • DescriptionN-Channel 30 V 25A (Tc) 3.2W (Tc) Surface Mount 8-SOIC

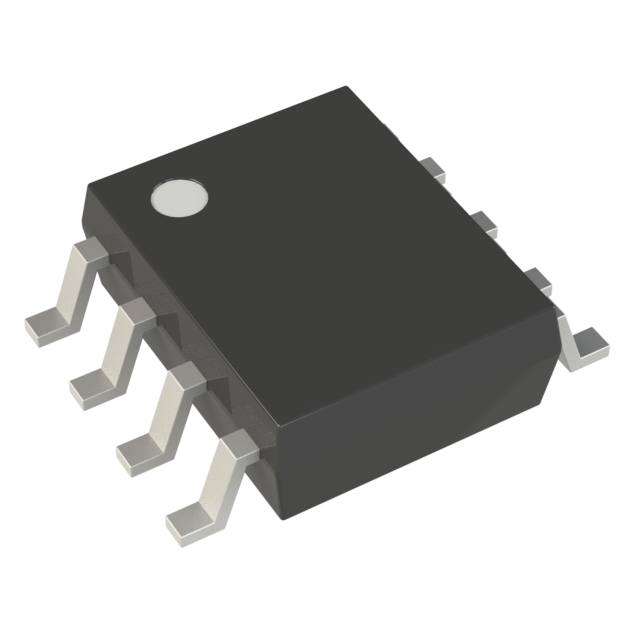

  • Package / Case8-SOIC (0.154", 3.90mm Width)
  • Mounting TypeSurface Mount
  • Operating Temperature-55°C ~ 175°C (TJ)
  • TechnologyMOSFET (Metal Oxide)
  • FET TypeN-Channel
  • Current - Continuous Drain (Id) @ 25°C25A (Tc)
  • Rds On (Max) @ Id, Vgs3.5mOhm @ 12.5A, 10V
  • Power Dissipation (Max)3.2W (Tc)
  • Vgs(th) (Max) @ Id1V @ 250µA
  • Supplier Device Package8-SOIC
  • Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
  • Vgs (Max)±18V
  • Drain to Source Voltage (Vdss)30 V
  • Gate Charge (Qg) (Max) @ Vgs40 nC @ 4.5 V
  • Input Capacitance (Ciss) (Max) @ Vds4450 pF @ 25 V

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new STS25NH3LL-E from STMicroelectronics only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
