Product Specifications
  • AttributesAttribute Value
  • ManufacturerTamura
  • CategoryTransformers
  • PackagesBulk
  • Standard Quantity560
  • Description600 Impedance Primary Ohms 600/600 Impedance Secondary Ohms 1:0.736 Audio Transformer 300Hz ~ 3.5kHz Through Hole
  • Size / Dimension0.799" L x 0.689" W (20.30mm x 17.50mm)
  • Mounting TypeThrough Hole
  • Termination StylePC Pin
  • Transformer TypeData/Voice Coupling
  • Turns Ratio - Primary:Secondary1:0.736
  • Insertion Loss1.2dB Max @ 1kHz
  • Frequency Range300Hz ~ 3.5kHz
  • Voltage - Isolation1500VRMS @ 1 Minute
  • Approval AgencyCSA-C22.2 No. 66-M1988, UL1459
  • Height - Seated (Max)0.752" (19.10mm)
  • Impedance - Primary (Ohms)600
  • Impedance - Secondary (Ohms)600/600
  • DC Resistance (DCR) - Primary57Ohm
  • DC Resistance (DCR) - Secondary42Ohm
  • Frequency Response±0.5dB
  • Power Level7dB

VIEW ALL

Quality and Reliability

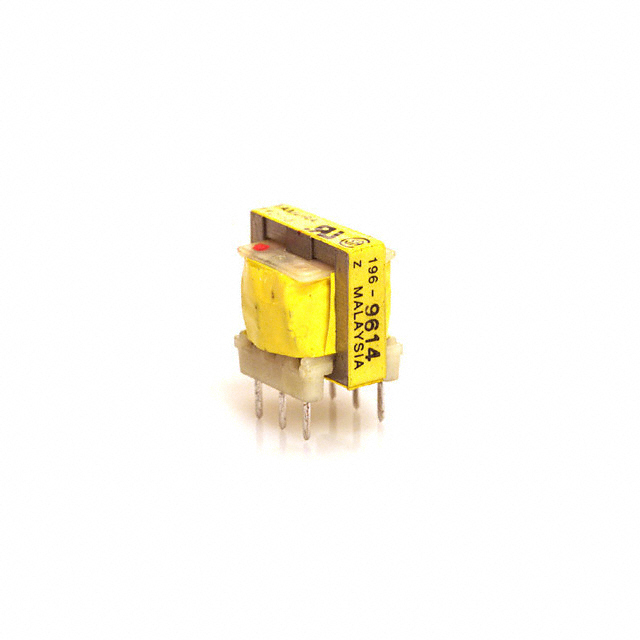

We supply 100% original and brand-new TTC-10 from Tamura only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.
