  • TDK Corporation
  • PC40P9/5Z-52H
  • Magnetics - Transformer, Inductor Components

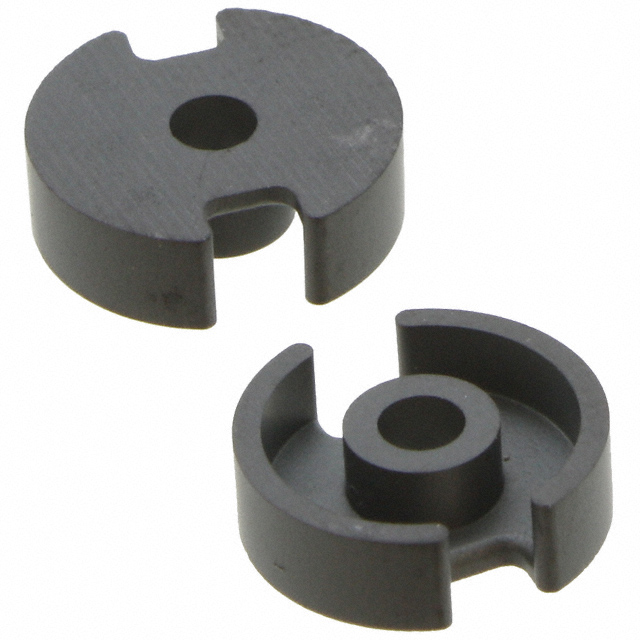

  • FERRITE CORE P PCS40 2PC SET
  •  PC40P9/5Z-52H Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity1224
  • DescriptionUncoated PC40 Ferrite Core P (Pot Core) Type Length Width 0.288" (7.33mm) Diameter 0.136" (3.45mm) Height
  • MaterialPC40
  • Diameter0.288" (7.33mm)
  • Height0.136" (3.45mm)
  • Core TypeP (Pot Core)
  • Supplier Device PackageP 9 x 5
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)821
  • Core Factor (ΣI/A) mm⁻¹1.24
  • Effective Length (le) mm12.4
  • Effective Area (Ae) mm²10
  • Effective Magnetic Volume (Ve) mm³124

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC40P9/5Z-52H from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 15,912
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
