  • TDK Corporation
  • PC95ELT11X4-Z
  • Magnetics - Transformer, Inductor Components

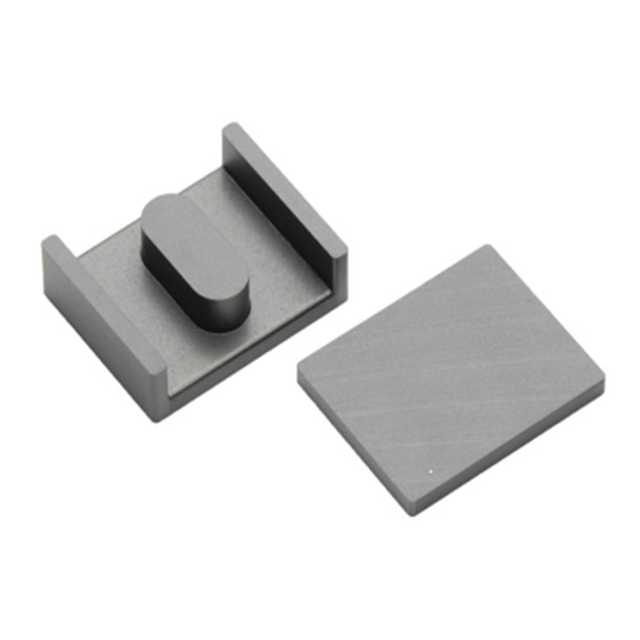

  • FERRITE COR ELH 2.4UH PCS95 1SET
  •  PC95ELT11X4-Z Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK Corporation
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesTray
  • Standard Quantity540
  • DescriptionUncoated PC95 Ferrite Core ELH, PLT Type 0.433" (11.00mm) Length 0.346" (8.80mm) Width Diameter 0.119" (3.02mm) Height
  • Tolerance±25%
  • MaterialPC95
  • Length0.433" (11.00mm)
  • Width0.346" (8.80mm)
  • Height0.119" (3.02mm)
  • Core TypeELH, PLT
  • Supplier Device PackageELT 11 x 4
  • Inductance Factor (Al)2.4 µH
  • FinishUncoated
  • GapUngapped
  • Core Factor (ΣI/A) mm⁻¹0.83
  • Effective Length (le) mm16.5
  • Effective Area (Ae) mm²13.7
  • Minimum Core Cross Section (Amin) mm²15.9
  • Effective Magnetic Volume (Ve) mm³226

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new PC95ELT11X4-Z from TDK Corporation only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
