  • TDK EPCOS
  • B65883A0000R049
  • Magnetics - Transformer, Inductor Components

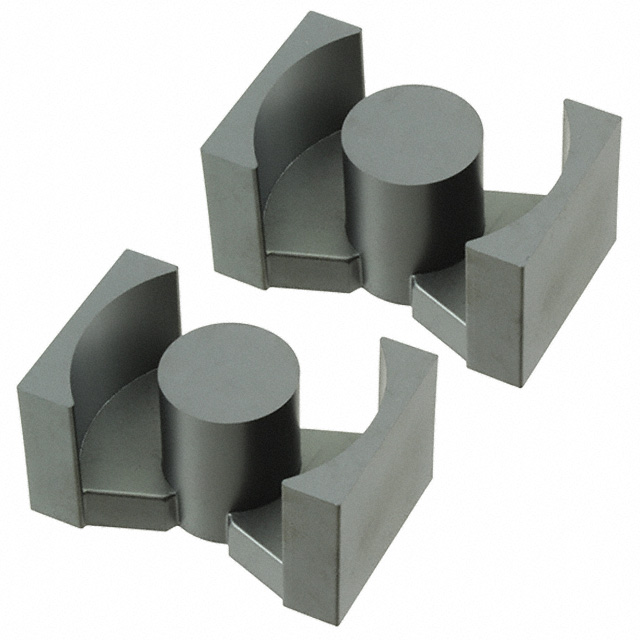

  • FERRITE CORE PQ 3.2UH N49 2PCS
  •  B65883A0000R049 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity45
  • DescriptionUncoated N49 Ferrite Core PQ Type 1.594" (40.50mm) Length 1.102" (28.00mm) Width Diameter 0.783" (19.90mm) Height
  • Tolerance-20%, +30%
  • MaterialN49
  • Length1.594" (40.50mm)
  • Width1.102" (28.00mm)
  • Height0.783" (19.90mm)
  • Core TypePQ
  • Supplier Device PackagePQ 40 x 40
  • Inductance Factor (Al)3.2 µH
  • Initial Permeability (µi)1500
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)2145
  • Core Factor (ΣI/A) mm⁻¹0.49
  • Effective Length (le) mm92.5
  • Effective Area (Ae) mm²188.3
  • Minimum Core Cross Section (Amin) mm²159.9
  • Effective Magnetic Volume (Ve) mm³17430

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65883A0000R049 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 60
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
