  • TDK EPCOS
  • B66375G0000X197
  • Magnetics - Transformer, Inductor Components

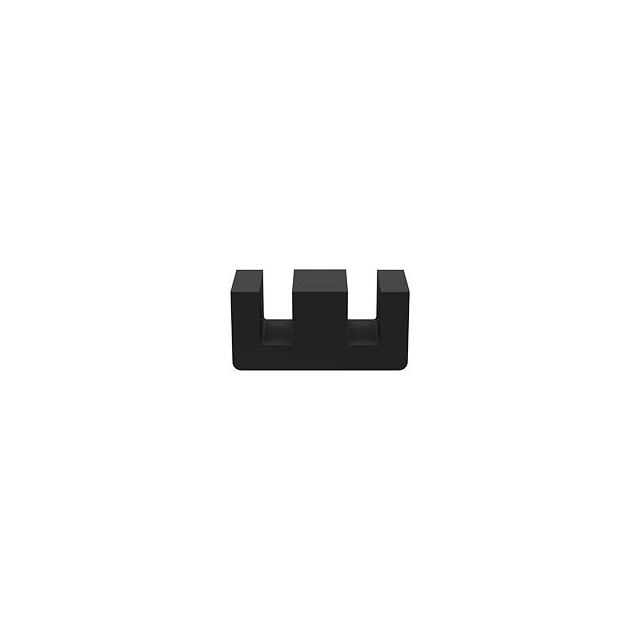

  • FERRITE CORE E 4.7UH N97
  •  B66375G0000X197 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity40
  • DescriptionUncoated N97 Ferrite Core E Type 3.150" (80.00mm) Length 0.795" (20.20mm) Width Diameter 1.516" (38.50mm) Height
  • Tolerance-20%, +30%
  • MaterialN97
  • Length3.150" (80.00mm)
  • Width0.795" (20.20mm)
  • Height1.516" (38.50mm)
  • Core TypeE
  • Supplier Device PackageE 80 x 38 x 20
  • Inductance Factor (Al)4.7 µH
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1770
  • Core Factor (ΣI/A) mm⁻¹0.47
  • Effective Length (le) mm184
  • Effective Area (Ae) mm²388
  • Minimum Core Cross Section (Amin) mm²388
  • Effective Magnetic Volume (Ve) mm³71800

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B66375G0000X197 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 75
Please send an RFQ for instant price and inventory.
