Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryInductors, Coils, Chokes
  • PackagesTape & Reel (TR)
  • Standard Quantity1000

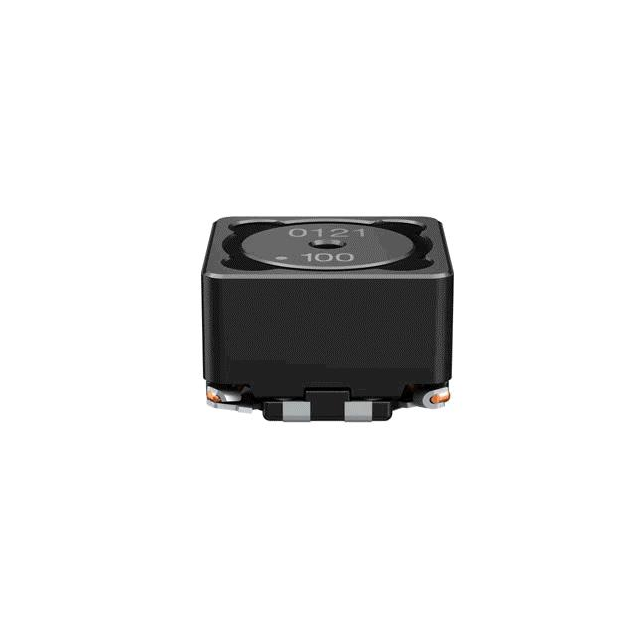

  • DescriptionShielded 2 Coil Inductor Array 27.2 µH Inductance - Connected in Series 6.8 µH Inductance - Connected in Parallel 37.5mOhm Max DC Resistance (DCR) - Parallel Nonstandard
  • Tolerance±20%
  • Package / CaseNonstandard
  • Size / Dimension0.287" L x 0.287" W (7.30mm x 7.30mm)
  • Mounting TypeSurface Mount
  • ShieldingShielded
  • Operating Temperature-55°C ~ 150°C
  • Height0.189" (4.80mm)
  • RatingsAEC-Q200
  • Number of Coils2
  • Inductance - Connected In Series27.2 µH
  • Inductance - Connected In Parallel6.8 µH
  • Current Rating - Series2.75 A
  • Current Saturation - Parallel4.6 A
  • Current Saturation - Series2.3 A
  • DC Resistance (DCR) - Parallel37.5mOhm Max
  • DC Resistance (DCR) - Series150mOhm Max

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B82472D6682M000 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 970
Please send an RFQ for instant price and inventory.
