  • TDK EPCOS
  • B65523J0000R087
  • Magnetics - Transformer, Inductor Components

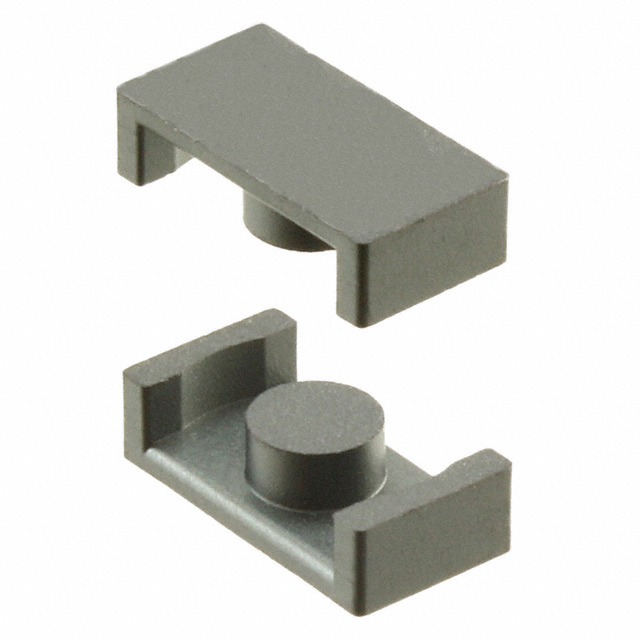

  • FERRITE CORE ER 800NH N87 2PCS
  •  B65523J0000R087 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity2000
  • DescriptionUncoated N87 Ferrite Core ER Type 0.374" (9.50mm) Length 0.197" (5.00mm) Width Diameter 0.098" (2.50mm) Height
  • Tolerance-20%, +30%
  • MaterialN87
  • Length0.374" (9.50mm)
  • Width0.197" (5.00mm)
  • Height0.098" (2.50mm)
  • Core TypeER
  • Supplier Device PackageER 9.5 x 5
  • Inductance Factor (Al)800 nH
  • Initial Permeability (µi)2200
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1000
  • Core Factor (ΣI/A) mm⁻¹1.54
  • Effective Length (le) mm13.6
  • Effective Area (Ae) mm²8.81
  • Effective Magnetic Volume (Ve) mm³120

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65523J0000R087 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 16,382
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
