Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • TDK EPCOS
  • B65525J0000R097
  • Magnetics - Transformer, Inductor Components

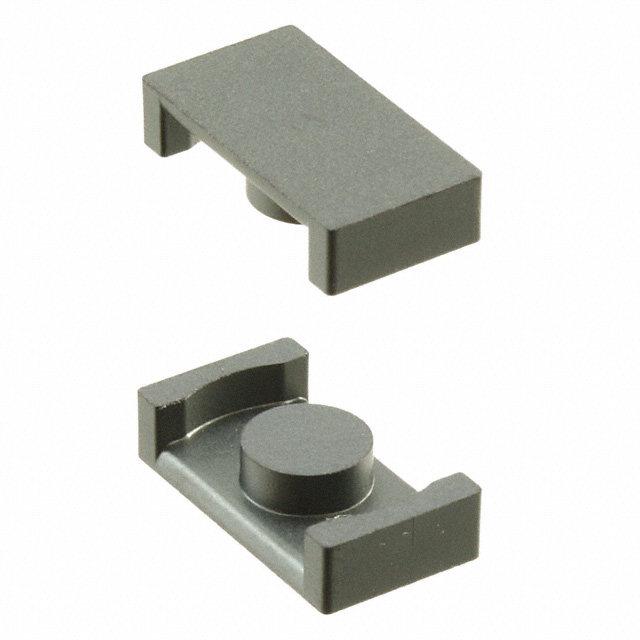

  • FERRITE CORE ER 1.2UH N97 2PCS
  •  B65525J0000R097 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity1000
  • DescriptionUncoated N97 Ferrite Core ER Type 0.433" (11.00mm) Length 0.236" (6.00mm) Width Diameter 0.098" (2.50mm) Height
  • Tolerance-20%, +30%
  • MaterialN97
  • Length0.433" (11.00mm)
  • Width0.236" (6.00mm)
  • Height0.098" (2.50mm)
  • Core TypeER
  • Supplier Device PackageER 11 x 5
  • Inductance Factor (Al)1.2 µH
  • Initial Permeability (µi)2300
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1086
  • Core Factor (ΣI/A) mm⁻¹1.1
  • Effective Length (le) mm14.1
  • Effective Area (Ae) mm²12.4
  • Effective Magnetic Volume (Ve) mm³174

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65525J0000R097 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 10,956
Please send an RFQ for instant price and inventory.
