  • TDK EPCOS
  • B65646A0250A027
  • Magnetics - Transformer, Inductor Components

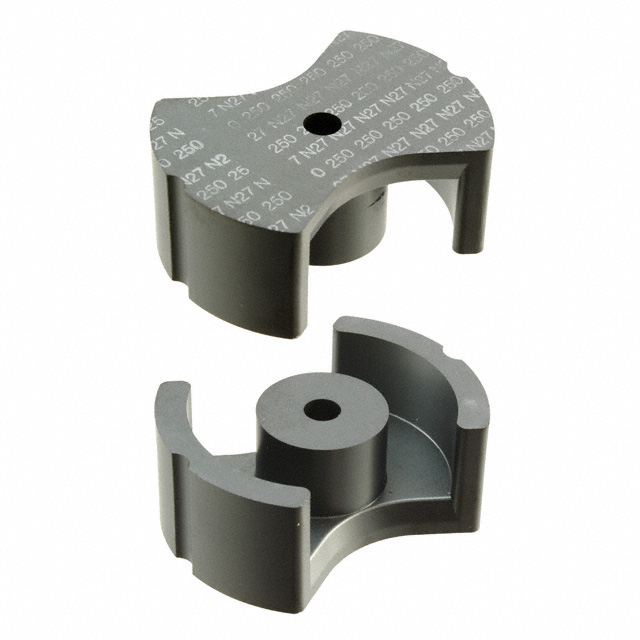

  • FERRITE CORE PM 250NH N27 2PCS
  •  B65646A0250A027 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity30
  • DescriptionUncoated N27 Ferrite Core PM Type Length Width 1.969" (50.00mm) Diameter 0.768" (19.50mm) Height
  • Tolerance±3%
  • MaterialN27
  • Diameter1.969" (50.00mm)
  • Height0.768" (19.50mm)
  • Core TypePM
  • Supplier Device PackagePM 50 x 39
  • Inductance Factor (Al)250 nH
  • Initial Permeability (µi)2000
  • FinishUncoated
  • GapGapped
  • Effective Permeability (µe)45
  • Core Factor (ΣI/A) mm⁻¹0.227
  • Effective Length (le) mm84
  • Effective Area (Ae) mm²370
  • Minimum Core Cross Section (Amin) mm²280
  • Effective Magnetic Volume (Ve) mm³31000

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65646A0250A027 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 864
Please send an RFQ for instant price and inventory.
