  • TDK EPCOS
  • B65646A0630A027
  • Magnetics - Transformer, Inductor Components

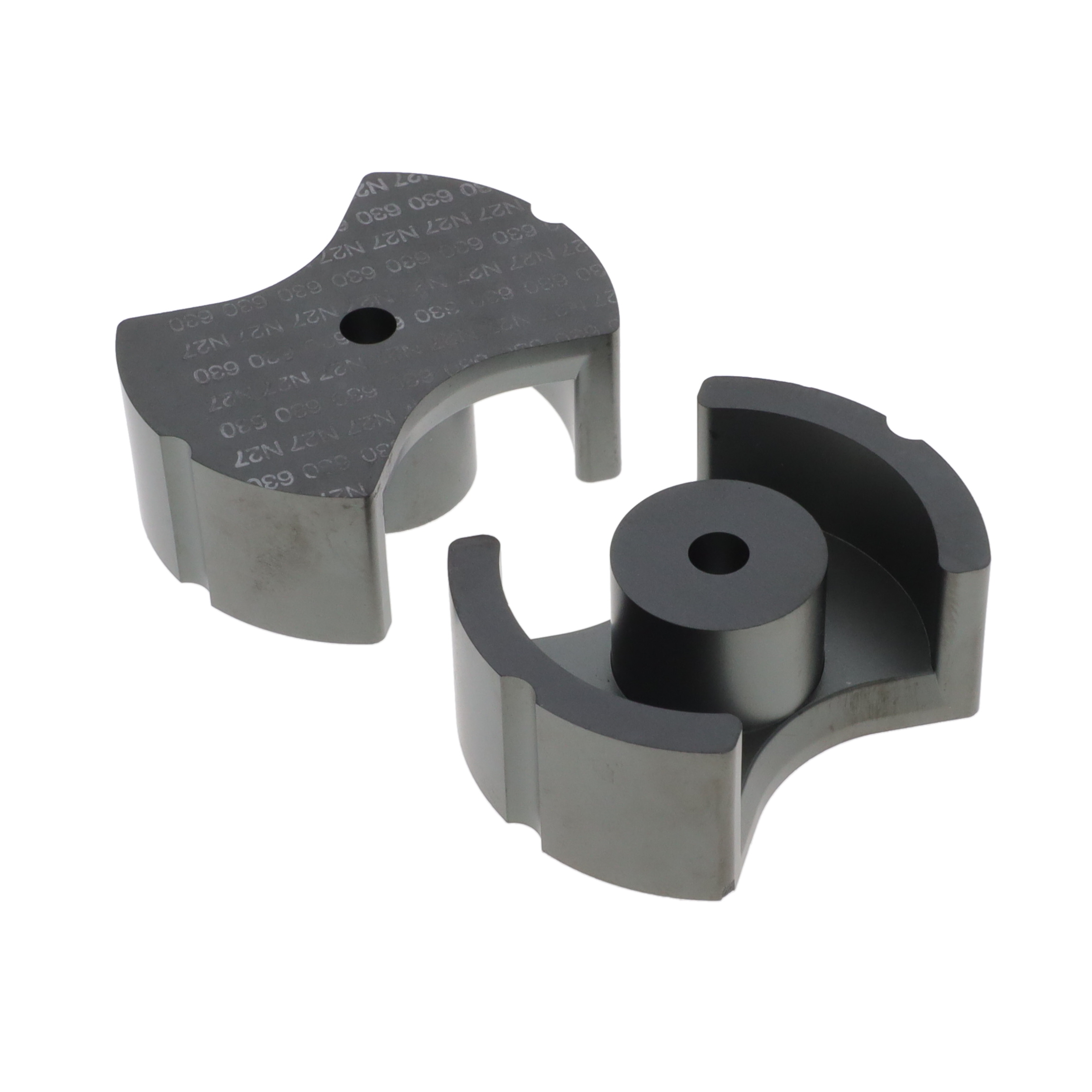

  • FERRITE CORE PM 630NH N27 2PCS
  •  B65646A0630A027 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity30
  • DescriptionUncoated N27 Ferrite Core PM Type Length Width 1.969" (50.00mm) Diameter 0.768" (19.50mm) Height
  • Tolerance±3%
  • MaterialN27
  • Diameter1.969" (50.00mm)
  • Height0.768" (19.50mm)
  • Core TypePM
  • Supplier Device PackagePM 50 x 39
  • Inductance Factor (Al)630 nH
  • Initial Permeability (µi)2000
  • FinishUncoated
  • GapGapped
  • Effective Permeability (µe)114
  • Core Factor (ΣI/A) mm⁻¹0.227
  • Effective Length (le) mm84
  • Effective Area (Ae) mm²370
  • Minimum Core Cross Section (Amin) mm²280
  • Effective Magnetic Volume (Ve) mm³31000

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65646A0630A027 from TDK EPCOS only.
