  • TDK EPCOS
  • B65701W0000R030
  • Magnetics - Transformer, Inductor Components

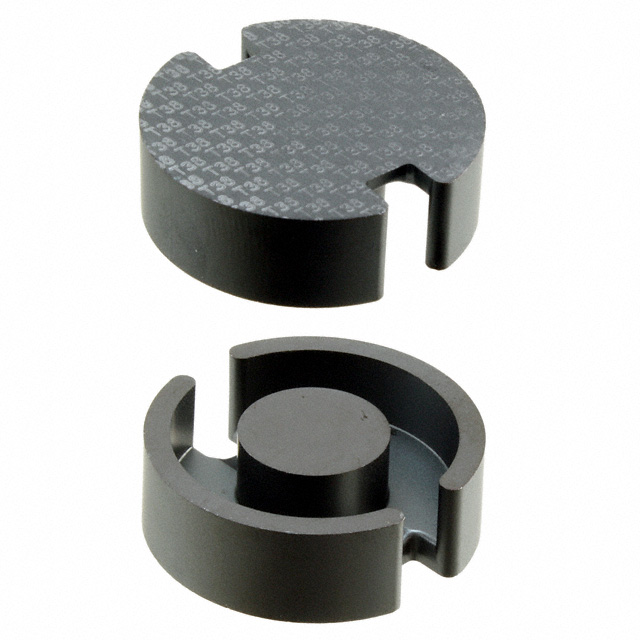

  • FERRITE CORE P 11.5UH N30 2PCS
  •  B65701W0000R030 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity160
  • DescriptionUncoated N30 Ferrite Core P (Pot Core) Type Length Width 1.200" (30.50mm) Diameter 0.374" (9.50mm) Height
  • Tolerance-20%, +30%
  • MaterialN30
  • Diameter1.200" (30.50mm)
  • Height0.374" (9.50mm)
  • Core TypeP (Pot Core)
  • Supplier Device PackageP 30 x 19
  • Inductance Factor (Al)11.5 µH
  • Initial Permeability (µi)4300
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)2900
  • Core Factor (ΣI/A) mm⁻¹0.32
  • Effective Length (le) mm46
  • Effective Area (Ae) mm²145
  • Minimum Core Cross Section (Amin) mm²117
  • Effective Magnetic Volume (Ve) mm³6670

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65701W0000R030 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 26
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY
