  • TDK EPCOS
  • B65803J0000R045
  • Magnetics - Transformer, Inductor Components

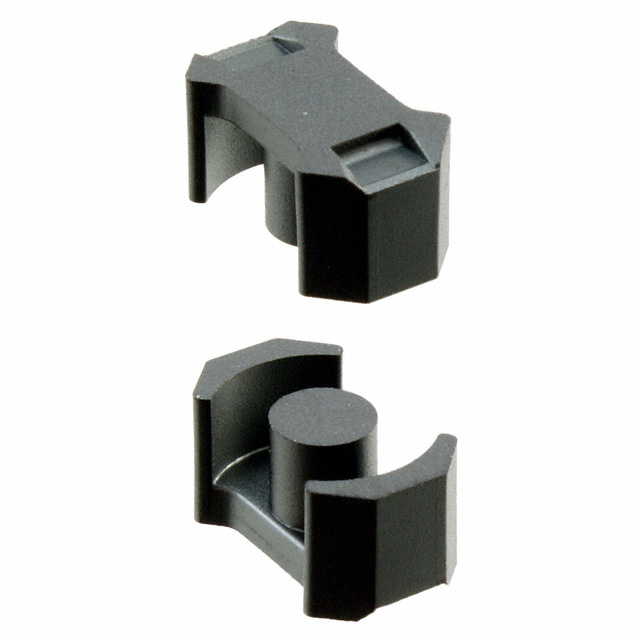

  • FERRITE CORE RM 1.7UH N45 2PCS
  •  B65803J0000R045 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity1200
  • DescriptionUncoated N45 Ferrite Core RM Type 0.433" (11.00mm) Length 0.181" (4.60mm) Width Diameter 0.207" (5.25mm) Height
  • Tolerance-20%, +30%
  • MaterialN45
  • Length0.433" (11.00mm)
  • Width0.181" (4.60mm)
  • Height0.207" (5.25mm)
  • Core TypeRM
  • Supplier Device PackageRM 4
  • Inductance Factor (Al)1.7 µH
  • Initial Permeability (µi)3800
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)2290
  • Core Factor (ΣI/A) mm⁻¹1.7
  • Effective Length (le) mm22
  • Effective Area (Ae) mm²13
  • Minimum Core Cross Section (Amin) mm²11.3
  • Effective Magnetic Volume (Ve) mm³286

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65803J0000R045 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.
