  • TDK EPCOS
  • B65805J0000R097
  • Magnetics - Transformer, Inductor Components

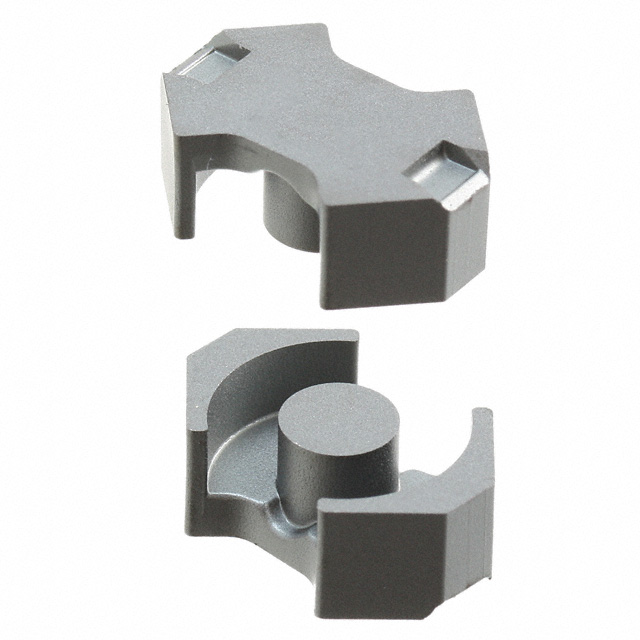

  • FERRITE CORE RM 2UH N97 2PCS
  •  B65805J0000R097 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesCut Tape (CT)
  • Standard Quantity500
  • DescriptionUncoated N97 Ferrite Core RM Type 0.575" (14.60mm) Length 0.268" (6.80mm) Width Diameter 0.207" (5.25mm) Height
  • Tolerance-20%, +30%
  • MaterialN97
  • Length0.575" (14.60mm)
  • Width0.268" (6.80mm)
  • Height0.207" (5.25mm)
  • Core TypeRM
  • Supplier Device PackageRM 5
  • Inductance Factor (Al)2 µH
  • Initial Permeability (µi)2300
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)1480.0
  • Core Factor (ΣI/A) mm⁻¹0.93
  • Effective Length (le) mm22.1
  • Effective Area (Ae) mm²23.8
  • Minimum Core Cross Section (Amin) mm²18.0
  • Effective Magnetic Volume (Ve) mm³526.0
