Sourcing Hard-To-Find Electronic ComponentsCustomers Reviews | News
  • TDK EPCOS
  • B65805J0000Y066
  • Magnetics - Transformer, Inductor Components

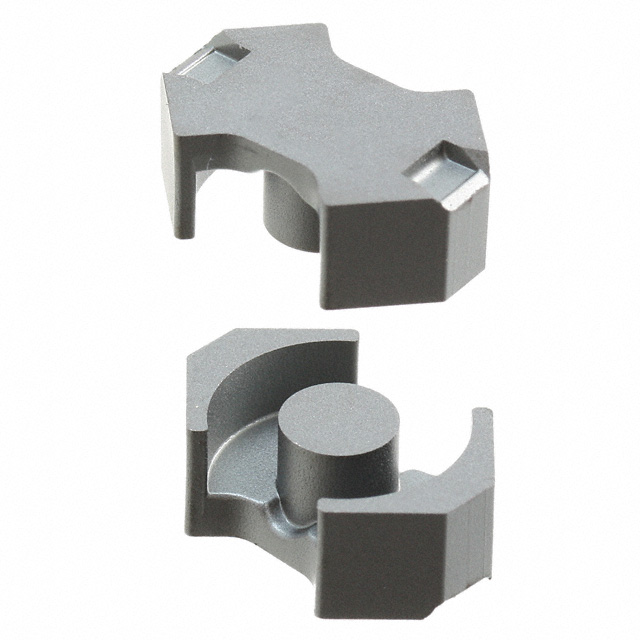

  • FERRITE CORE RM 9.6UH T66 2PCS
  •  B65805J0000Y066 Datasheet
  • Cost Reduction
  • Min Order From 1 PCS
  • 365 Days Warranty
  • 12 Hours Quotation
Product Specifications
  • AttributesAttribute Value
  • ManufacturerTDK EPCOS
  • CategoryMagnetics - Transformer, Inductor Components
  • PackagesBox
  • Standard Quantity500
  • DescriptionUncoated T66 Ferrite Core RM Type 0.575" (14.60mm) Length 0.268" (6.80mm) Width Diameter 0.207" (5.25mm) Height
  • Tolerance-30%, +40%
  • MaterialT66
  • Length0.575" (14.60mm)
  • Width0.268" (6.80mm)
  • Height0.207" (5.25mm)
  • Core TypeRM
  • Supplier Device PackageRM 5
  • Inductance Factor (Al)9.6 µH
  • Initial Permeability (µi)13000
  • FinishUncoated
  • GapUngapped
  • Effective Permeability (µe)7090
  • Core Factor (ΣI/A) mm⁻¹0.93
  • Effective Length (le) mm22.1
  • Effective Area (Ae) mm²23.8
  • Minimum Core Cross Section (Amin) mm²18
  • Effective Magnetic Volume (Ve) mm³526

VIEW ALL

Quality and Reliability

We supply 100% original and brand-new B65805J0000Y066 from TDK EPCOS only.

Hard Find Electronics Tech Limited is committed to achieving the highest levels of quality to meet and exceed customer requirements. We have built a network of trusted suppliers and assembled a team of experienced professionals to serve our customers better. Our rigorous 3-step quality control process ensures that you receive the best possible service and products. All components supplied by us come with a 365-day quality warranty, guaranteeing your satisfaction and confidence in our products.

Order Guide
  • RFQ
    Source at least two reliable suppliers
  • QUOTE
    Information checking available/price/condition
  • QC PROCESS
    3-Step Quality Control and Professional Third-Party Test
  • SHIPMENT
    FedEx, DHL, UPS, TNT
In Stock: 0
Please send an RFQ for instant price and inventory.
 Fast Shipping

QUANTITY

Multiples of 1
